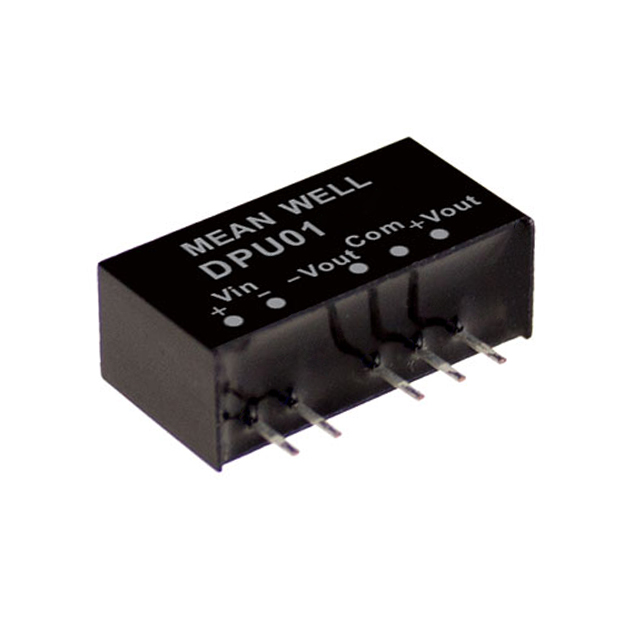

DPU01 Series

Catalog

DC DC CONVERTER +/-12V 1W

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Supplier Device Package	Applications	Package / Case	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Mounting Type	Voltage - Output 1	Features	Efficiency	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Min]
MEAN WELL USA Inc. DPU01L-12	5.5 V	90 °C	-40 °C	-12 V	6-SIP	ITE (Commercial)	6-SIP Module 5 Leads	42 mA	0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	2	Through Hole	12 V	SCP	78 %	4.5 V	1.5 kV	Isolated Module
MEAN WELL USA Inc. DPU01L-05	5.5 V	90 °C	-40 °C	-5 V	6-SIP	ITE (Commercial)	6-SIP Module 5 Leads		0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	2	Through Hole	5 V	SCP	78 %	4.5 V	1.5 kV	Isolated Module	100 mA	100 mA
MEAN WELL USA Inc. DPU01M-05	13.2 V	90 °C	-40 °C	-5 V	6-SIP	ITE (Commercial)	6-SIP Module 5 Leads		0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	2	Through Hole	5 V	SCP	81 %	10.8 V	1.5 kV	Isolated Module	100 mA	100 mA
MEAN WELL USA Inc. DPU01M-12	13.2 V	90 °C	-40 °C	-12 V	6-SIP	ITE (Commercial)	6-SIP Module 5 Leads	42 mA	0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	2	Through Hole	12 V	SCP	83 %	10.8 V	1.5 kV	Isolated Module
MEAN WELL USA Inc. DPU01N-15	26.4 V	90 °C	-40 °C	-15 V	6-SIP	ITE (Commercial)	6-SIP Module 5 Leads		0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	2	Through Hole	15 V	SCP	78 %	21.6 V	1.5 kV	Isolated Module			33 mA	33 mA
MEAN WELL USA Inc. DPU01N-05	26.4 V	90 °C	-40 °C	-5 V	6-SIP	ITE (Commercial)	6-SIP Module 5 Leads		0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	2	Through Hole	5 V	SCP	80 %	21.6 V	1.5 kV	Isolated Module	100 mA	100 mA
