S26B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

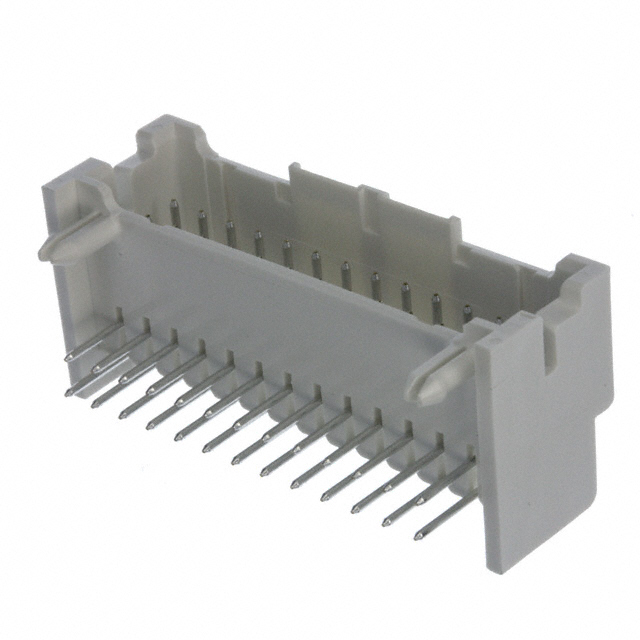

CONN HEADER R/A 26POS 2.5MM
| Part | Termination | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Fastening Type | Number of Positions | Style | Shrouding | Insulation Color | Number of Positions Loaded | Contact Finish - Post | Voltage Rating | Insulation Height | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Number of Rows [custom] | Connector Type | Contact Shape | Contact Material | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | Right Angle Through Hole | UL94 V-0 | 3 A | Locking Ramp | 26 | Board to Cable/Wire | Shrouded - 4 Wall | Natural | All | Tin | 250 V | 12.1 mm | 0.476 " | 2.5 mm | 0.098 in | Glass Filled Nylon 6/6 Polyamide (PA66) | 2 | Header | Circular | Copper Alloy | 2.5 mm | 0.098 in | 85 °C | -25 °C | Male Pin | 0.134 " | 3.4 mm |
