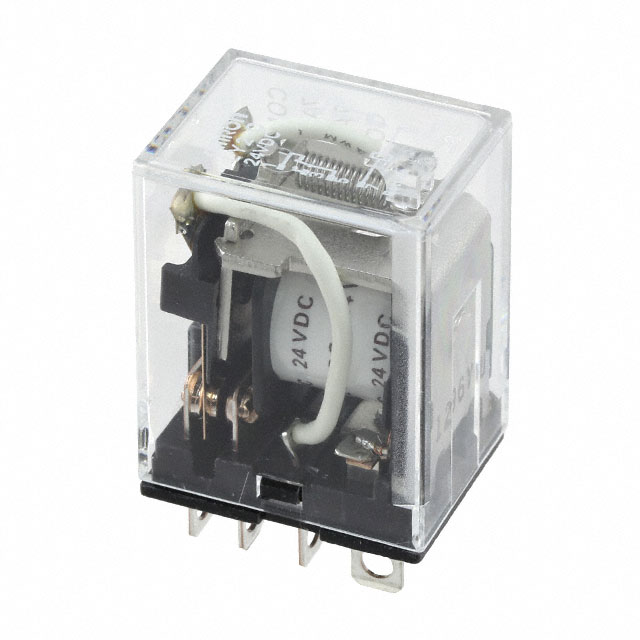

LY2-C D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 24V
| Part | Coil Current | Contact Form | Coil Voltage | Must Operate Voltage | Relay Type | Release Time | Switching Voltage | Load - Max Switching | Mounting Type | Approval Agency | Contact Material | Termination Style | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Must Release Voltage | Contact Rating (Current) | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 36.9 mA | DPDT (2 Form C) | 24 VDC | 19.2 VDC | General Purpose | 25 ms | 125 VDC 250 VAC | 1250 W 2500 VA | Socketable | CE CSA TUV UR | Silver Alloy | Plug In | 650 Ohms | 55 °C | -25 °C | 25 ms | 2.4 VDC | 10 A | Non Latching |
