747306 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN D-SUB PLUG 15POS IDC
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Flange Feature | Number of Rows [custom] | Connector Style | Shell Size, Connector Layout | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Current Rating (Amps) | Connector Type | Features | Contact Type | Number of Positions | Termination | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

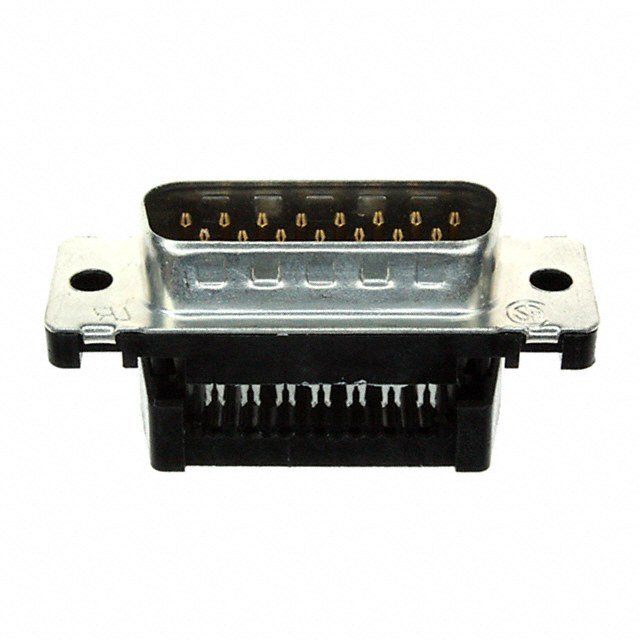

 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | Phosphor Bronze | Thermoplastic | Housing/Shell (Unthreaded) | 2 | D-Sub | 2 | UL94 V-0 | 30 Áin | 0.76 Ám | Gold | 1.25 A | Plug Male Pins | Feed Through Grounding Indents | Signal | 15 | IDC Ribbon Cable | Free Hanging (In-Line) | ||

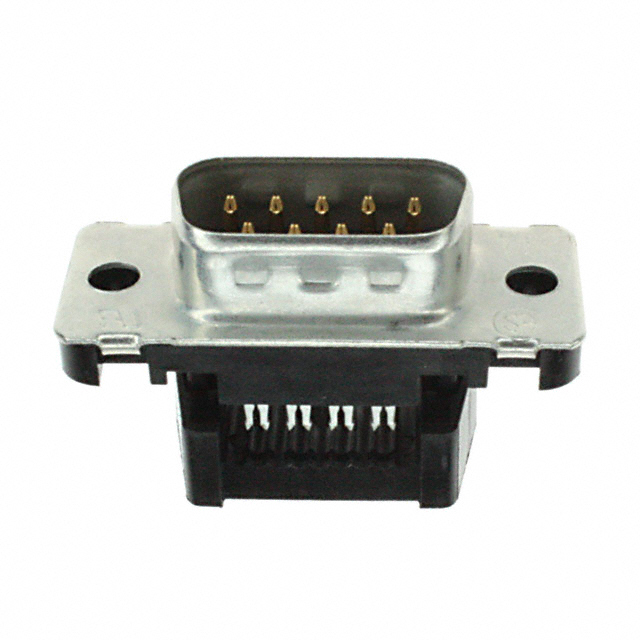

 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | Phosphor Bronze | Thermoplastic | Housing/Shell (Unthreaded) | 2 | D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | Gold | 1.25 A | Plug Male Pins | Feed Through Grounding Indents | Signal | 9 | IDC Ribbon Cable | Free Hanging (In-Line) | 1 | DE E |
