89898 Series

Catalog

CONN RCPT 30POS .100 DL STR SMD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Mounting Type	Features	Material Flammability Rating	Termination	Contact Type	Mated Stacking Heights	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Shape	Fastening Type	Applications	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish - Mating	Number of Positions	Number of Positions Loaded	Contact Material	Number of Positions
Amphenol ICC (FCI) 89898-315A	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount	Pick and Place	UL94 V-0	Solder	Female Socket	10.81 mm	Tin	30 Áin	0.76 Ám	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray	Gold	30	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-427ALF	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount	Pick and Place	UL94 V-0	Solder	Female Socket	10.81 mm	Tin	78.7 µin	2 µm	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray		54	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-318GLF	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount	Pick and Place	UL94 V-0	Solder	Female Socket	10.81 mm	Tin	30 Áin	0.76 Ám	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray	Gold	36	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-430LF	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount		UL94 V-0	Solder	Female Socket	10.81 mm	Tin	78.7 µin	2 µm	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray		60	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-325	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount		UL94 V-0	Solder	Female Socket	10.81 mm	Tin	30 Áin	0.76 Ám	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray	Gold	50	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-405ALF	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount	Pick and Place	UL94 V-0	Solder	Female Socket	10.81 mm	Tin	78.7 µin	2 µm	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray		10	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-407ALF	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount	Pick and Place	UL94 V-0	Solder	Female Socket	10.81 mm	Tin	78.7 µin	2 µm	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray		14	All	Phosphor Bronze

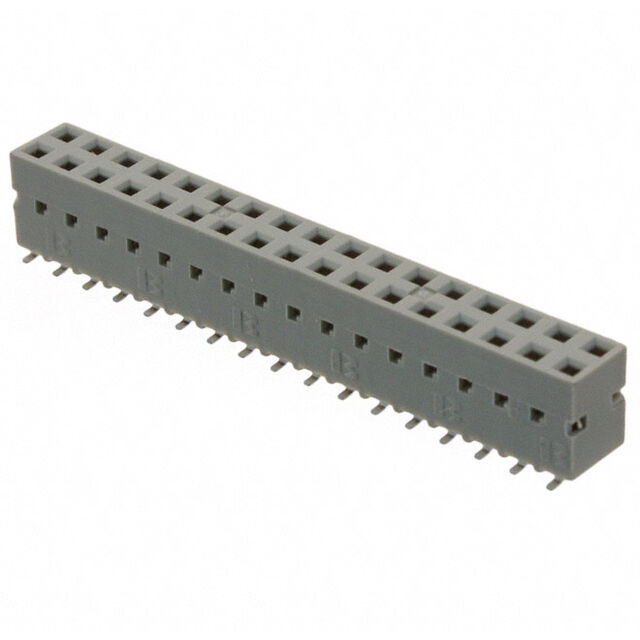

Amphenol ICC (FCI) 89898-317LF	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount		UL94 V-0	Solder	Female Socket	10.81 mm	Tin	30 Áin	0.76 Ám	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray	Gold	34	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-415GLF	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount	Pick and Place	UL94 V-0	Solder	Female Socket	10.81 mm	Tin	78.7 µin	2 µm	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray		30	All	Phosphor Bronze
Amphenol ICC (FCI) 89898-308A	2 çm	78.7 çin	0.1 in	2.54 mm	2	Surface Mount	Pick and Place	UL94 V-0	Solder	Female Socket	10.81 mm	Tin	30 Áin	0.76 Ám	6.99 mm	0.275 in	Square	Push-Pull	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	2.54 mm	0.1 in	Gray	Gold		All	Phosphor Bronze	16
