140805 Series

Catalog

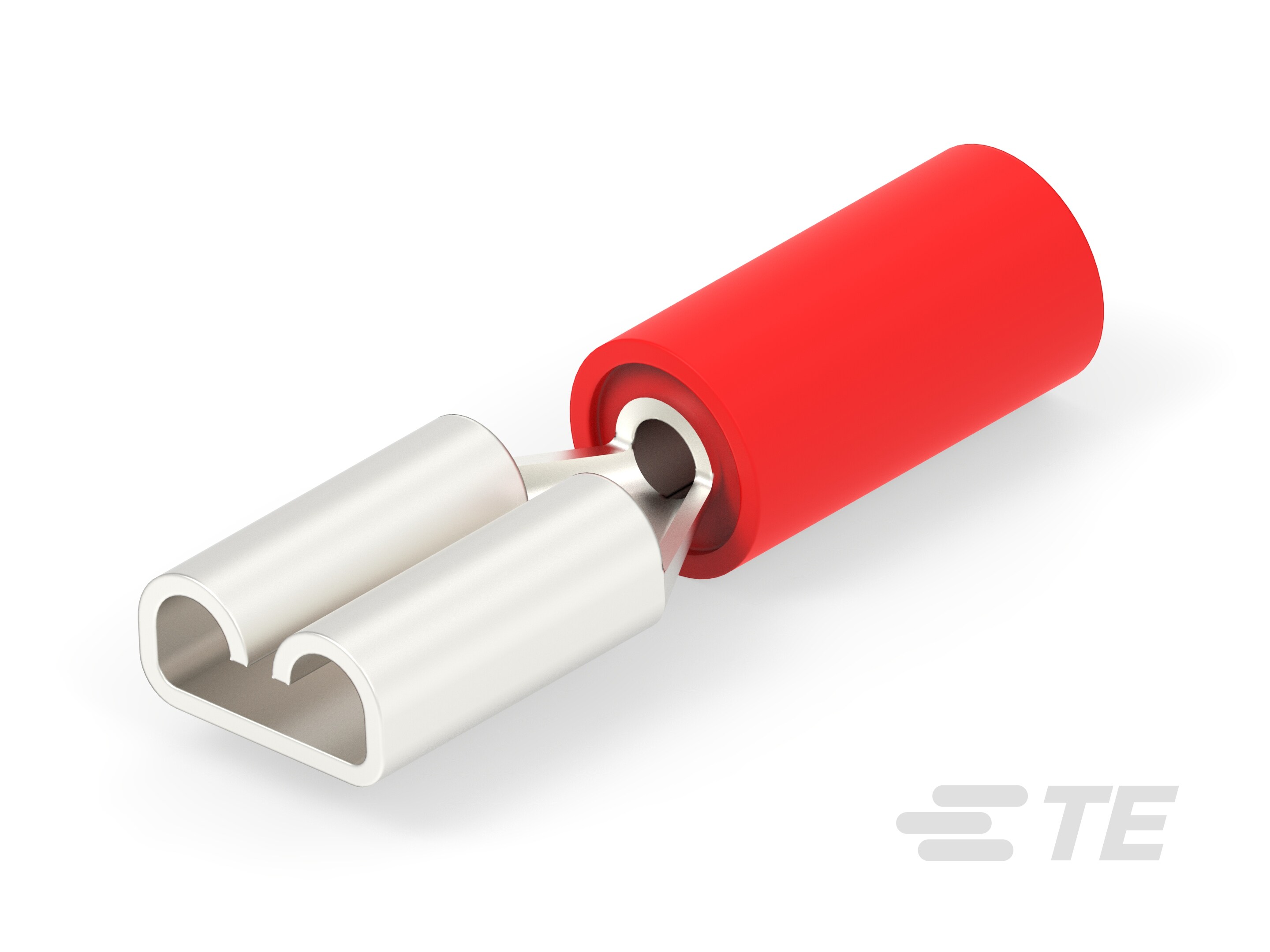

TERMINAL REC FASTON PIDG 5 ROHS COMPLIANT: YES

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Tab Thickness	Tab Thickness	Color	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Contact Material	Contact Finish	Termination	Tab Length	Tab Length	Terminal Type
TE Connectivity AMP Connectors 140805-2	3.3 mm	0.13 in	Non-Mating End Insulated	Female	17 AWG	22 AWG	Free Hanging (In-Line)	0.79 mm	0.031 in	Red	0.85 in	21.59 mm	0.197 "	5 mm	Brass	Silver	Crimp	0.311 in	7.9 mm	Standard
