C146 10N015 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

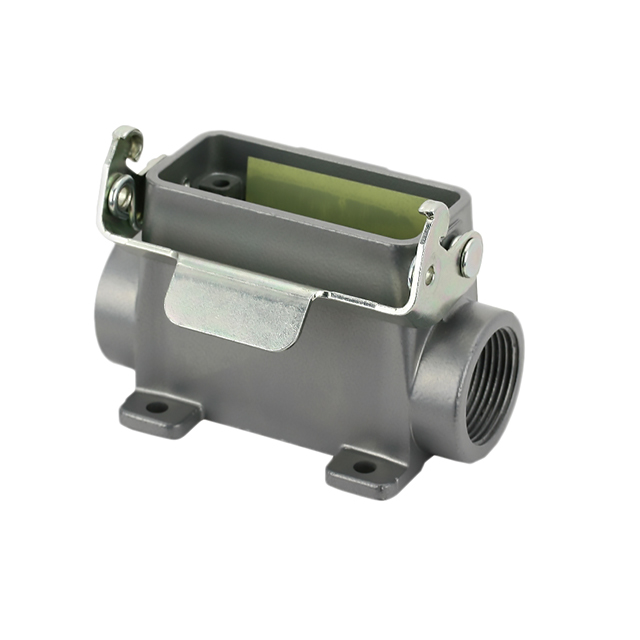

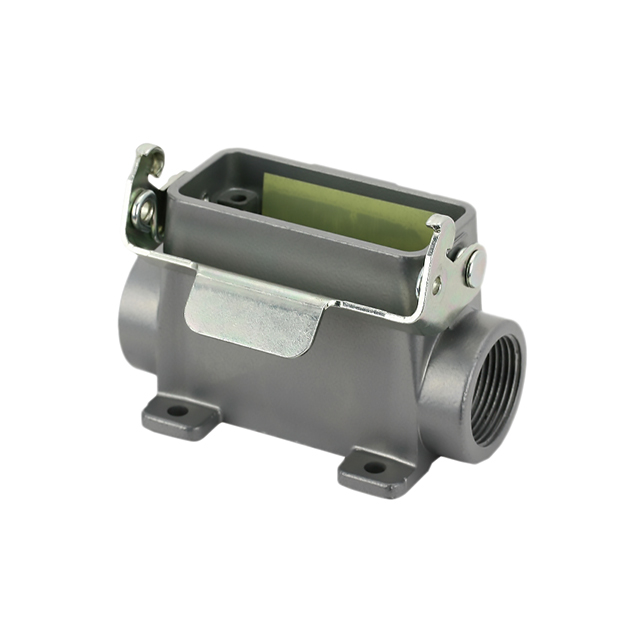

CONN BASE SIDE ENTRY SZA10 M25
| Part | Size | Style | Connector Type | Ingress Protection | Features | Housing Material | Thread Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | A10 | Side Entry | Base - Box Mount | IP65 - Dust Tight Water Resistant | Feed Through | Aluminum Alloy Die Cast | M25 | 1.969 in | 84 mm | 3.307 " | 52 mm | 2.047 " | 50 mm | -40 C | 100 °C | Locking Clip (1) on Base Bottom |
 Amphenol Tuchel Industrial | A10 | Side Entry | Base - Box Mount | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | M20 | 1.969 in | 84 mm | 3.307 " | 52 mm | 2.047 " | 50 mm | -40 C | 100 °C | Locking Clip (1) on Base Bottom |
