LA-301 Series

Catalog

DISPLAYS SEGMENTED PANEL 1DIGIT 8LED BLUE 10-PIN DIP FILM PACK

Part	Color	Millicandela Rating	Number of Characters	Display Type	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Common Pin	Power Dissipation (Max) [Max]	Wavelength - Peak	Package / Case	Package / Case	Package / Case

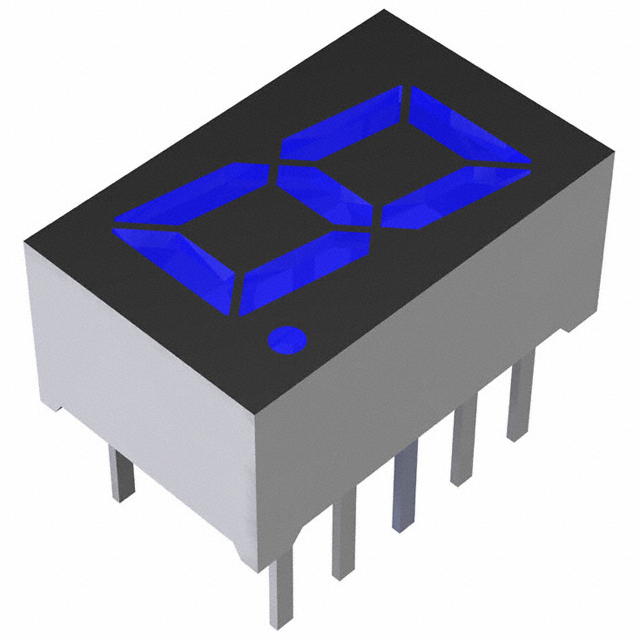

Rohm Semiconductor LA-301BB	Blue	56 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	3.6 V	Common Anode	42 mW	470 nm	5.3 mm	10-DIP	0.209 in
Rohm Semiconductor LA-301VB	Red	10 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	2 V	Common Anode	40 mW	650 nm	5.3 mm	10-DIP	0.209 in
Rohm Semiconductor LA-301AB	Red	90 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	2.05 V	Common Anode	65 mW	626 nm	5.3 mm	10-DIP	0.209 in
Rohm Semiconductor LA-301EB		90 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	2.05 V	Common Anode	65 mW	610 nm	5.3 mm	10-DIP	0.209 in
Rohm Semiconductor LA-301DL		6.3 mcd	1	7-Segment	15 mA	0.31 in	8 mm	5 mm	0.433 in	7 mm	11 mm	0.275 "	0.197 "	2 V	Common Cathode	40 mW	610 nm	5.3 mm	10-DIP	0.209 in
Rohm Semiconductor LA-301VL	Red	10 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	2 V	Common Cathode	40 mW	650 nm	5.3 mm	10-DIP	0.209 in
Rohm Semiconductor LA-301DB		6.3 mcd	1	7-Segment	15 mA	0.31 in	8 mm	5 mm	0.433 in	7 mm	11 mm	0.275 "	0.197 "	2 V	Common Anode	40 mW	610 nm	5.3 mm	10-DIP	0.209 in

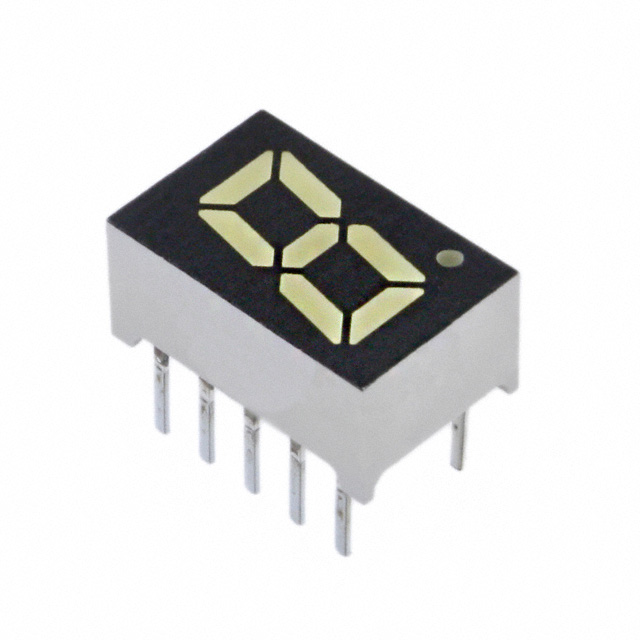

Rohm Semiconductor LA-301XL	Yellow	90 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	2.05 V	Common Cathode	65 mW	589 nm	5.3 mm	10-DIP	0.209 in

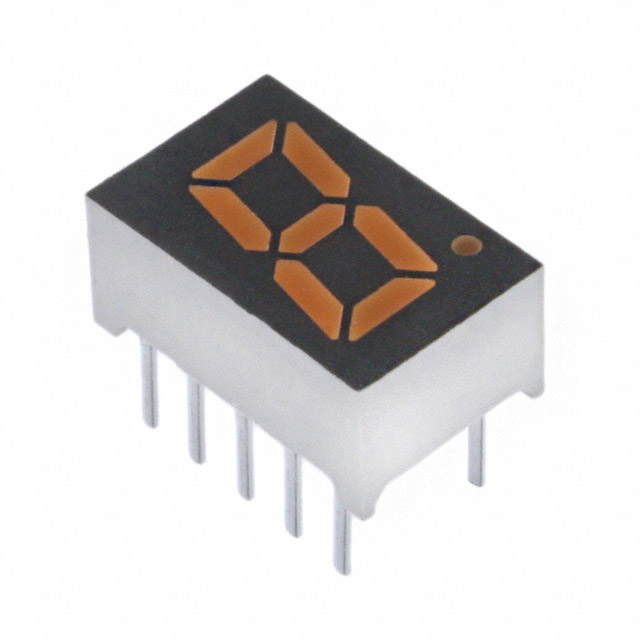

Rohm Semiconductor LA-301EL		90 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	2.05 V	Common Cathode	65 mW	610 nm	5.3 mm	10-DIP	0.209 in

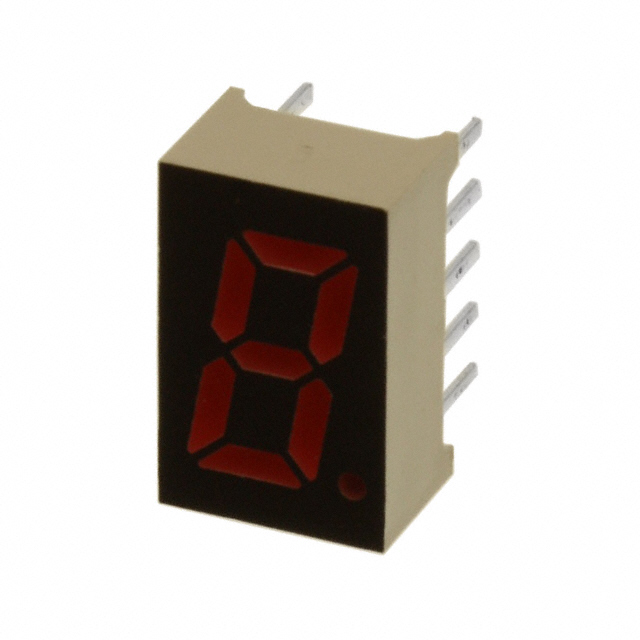

Rohm Semiconductor LA-301AL	Red	90 mcd	1	7-Segment	10 mA	0.31 in	8 mm	5 mm	0.276 in	11 mm	7 mm	0.433 in	0.197 "	2.05 V	Common Cathode	65 mW	626 nm	5.3 mm	10-DIP	0.209 in
