45AY Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

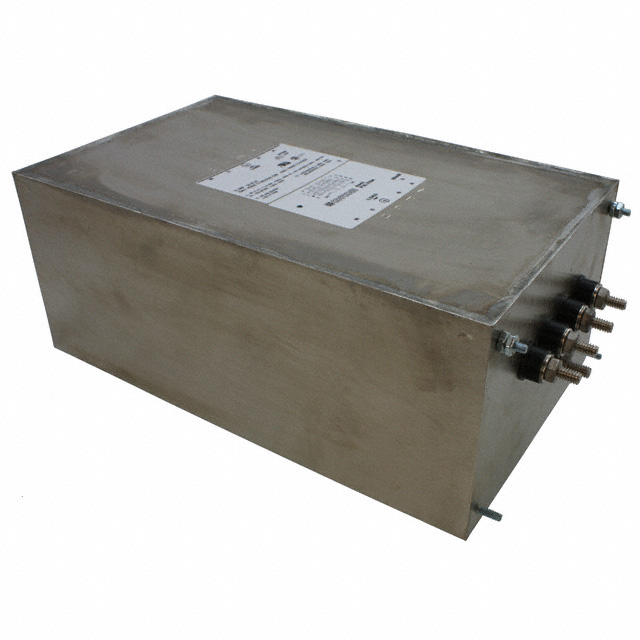

LINE FILTER 45A CHASSIS MOUNT
| Part | Frequency - Operating [Max] | Frequency - Operating [Min] | Filter Type | Operating Temperature [Max] | Operating Temperature [Min] | Current | Mounting Type | Inductance | Approval Agency | Applications | Voltage - Rated AC (Phase to Ground/Neutral) | Termination Style | Voltage - Rated AC (Phase to Phase) | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | 60 Hz | 50 Hz | Three Phase (Wye) | 40 °C | -10 °C | 45 A | Chassis Mount | 2.22 mH | CSA UL | General Purpose | 250 V | Threaded Post (1/4-20) | 440 V | Two Stage |
