AO680 Series

Catalog

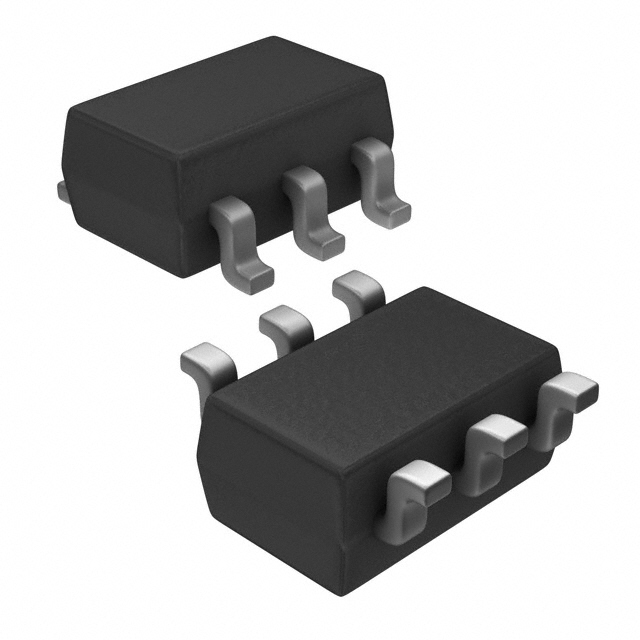

MOSFET 2N-CH 20V 4.6A 6TSOP

Part	Supplier Device Package	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	Configuration	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	FET Feature	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Power - Max [Max]	Mounting Type	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds
Alpha & Omega Semiconductor Inc. AO6808	6-TSOP	MOSFET (Metal Oxide)	21 nC	2 N-Channel (Dual) Common Drain	4.6 A	150 °C	-55 °C	Logic Level Gate	780 pF	23 mOhm	1 V	20 V	800 mW	Surface Mount	SC-74 SOT-457
Alpha & Omega Semiconductor Inc. AO6802	6-TSOP	MOSFET (Metal Oxide)		2 N-Channel (Dual)	3.5 A	150 °C	-55 °C	Logic Level Gate		50 mOhm	2.5 V	30 V	1.15 W	Surface Mount	SC-74 SOT-457	5 nC	210 pF
Alpha & Omega Semiconductor Inc. AO6804	6-TSOP	MOSFET (Metal Oxide)		2 N-Channel (Dual) Common Drain	4 A	150 °C	-55 °C	Logic Level Gate	725 pF	32 mOhm	1.2 V	20 V	800 mW	Surface Mount	SC-74 SOT-457	7.7 nC
