A8A-223 Series

Catalog

SWITCH ROCKER DPST 16A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Current Rating (Amps)	Mounting Type	Switch Function	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Approval Agency	Illumination Voltage (Nominal)	Color - Actuator/Cap	Termination Style	Actuator Marking	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit

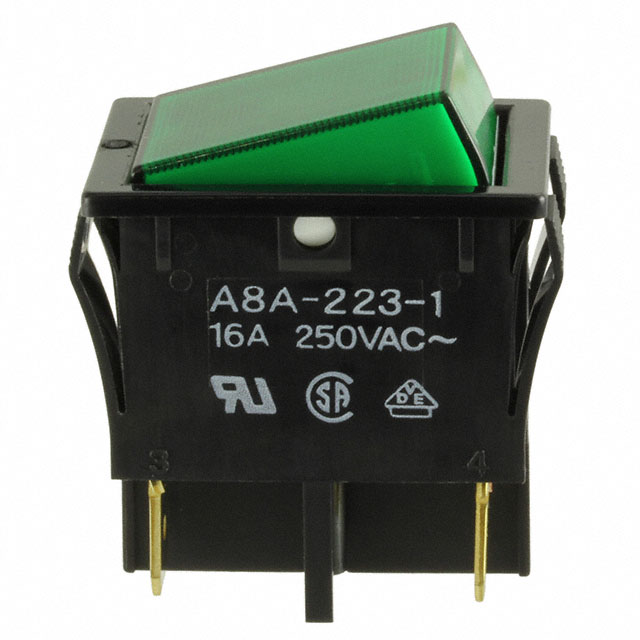

Omron Electronics Inc-EMC Div A8A-223-1	40000 Cycles	20000 Steps	125 V	30 mm	22 mm	IP00	16 A	Panel Mount Snap-In	On-Off	Neon	Green	CSA EN UL	220 VAC	Green	Quick Connect - 0.250" (6.3mm)	No Marking	Flat - Illuminated	50 °C	-25 °C	DPST

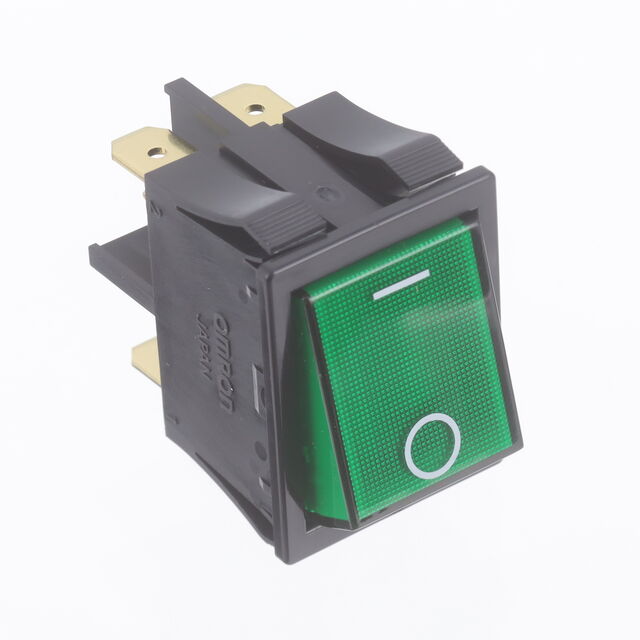

Omron Electronics Inc-EMC Div A8A-223-1A	40000 Cycles	20000 Steps	125 V	30 mm	22 mm	IP00	16 A	Panel Mount Snap-In	On-Off	Neon	Green	CSA EN UL	220 VAC	Green	Quick Connect - 0.250" (6.3mm)	No Marking	Flat - Illuminated	50 °C	-25 °C	DPST

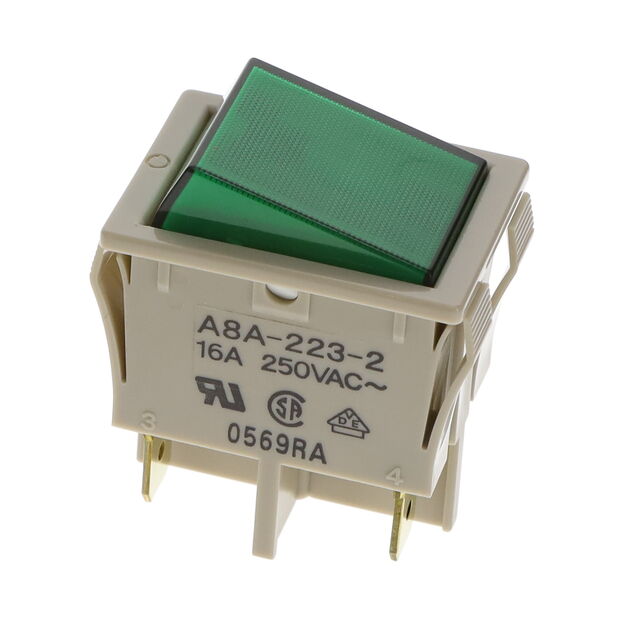

Omron Electronics Inc-EMC Div A8A-223-2	40000 Cycles	20000 Steps	125 V	30 mm	22 mm	IP00	16 A	Panel Mount Snap-In	On-Off	Neon	Green	CSA EN UL	220 VAC	Green	Quick Connect - 0.250" (6.3mm)	No Marking	Flat - Illuminated	50 °C	-25 °C	DPST
