NRPN042 Series

Catalog

CONN HEADER R/A 8POS 2MM

Part	Contact Finish Thickness - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Contact Shape	Contact Finish - Mating	Termination	Insulation Color	Contact Material	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Connector Type	Voltage Rating	Insulation Material	Number of Positions	Contact Finish - Post	Shrouding	Contact Type	Number of Rows [custom]	Style	Pitch - Mating	Pitch - Mating	Contact Length - Post [custom]	Contact Length - Post	Insulation Height	Insulation Height

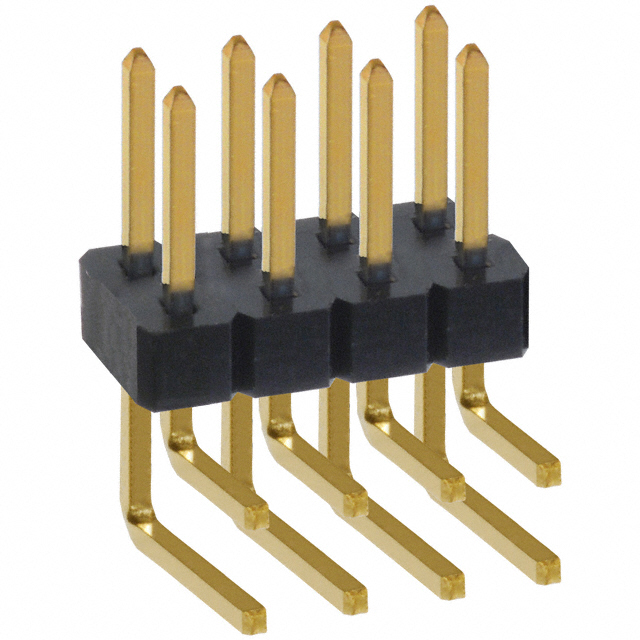

Sullins Connector Solutions NRPN042PARN-RC	Flash	UL94 V-0	-40 C	105 ░C	2 A	Push-Pull	Flash	Right Angle Through Hole	Square	Gold	Solder	Black	Brass	0.141 in	3.6 mm	4 mm	0.157 in	2 mm	0.079 in	All	Header	150 VDC	Nylon 6T Polyamide (PA6T)	8	Gold	Unshrouded	Male Pin	2	Board to Board Cable	0.079 "	2 mm	0.11 in	2.79 mm

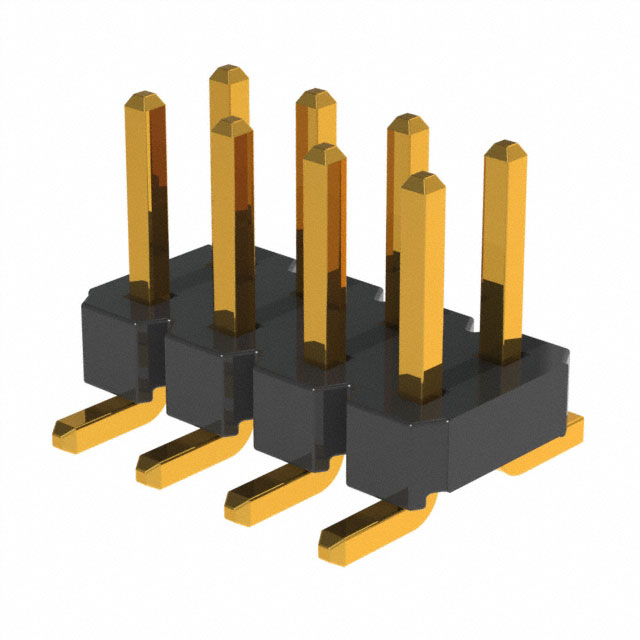

Sullins Connector Solutions NRPN042MAMS-RC	Flash	UL94 V-0	-40 C	105 ░C	2 A	Push-Pull	Flash	Surface Mount	Square	Gold	Solder	Black	Brass	0.141 in	3.6 mm			2 mm	0.079 in	All	Header	150 VDC	Nylon 6T Polyamide (PA6T)	8	Gold	Unshrouded	Male Pin	2	Board to Board Cable	0.079 "	2 mm			0.059 in	1.5 mm
