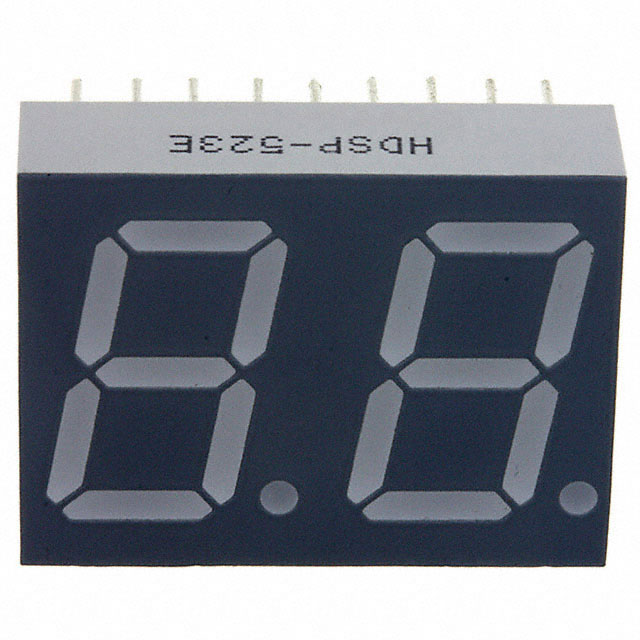

HDSP-523 Series
Manufacturer: Broadcom Limited
Beta
⌘K
7 SEGMENT LED DISPLAY, RED, 20 MA, 2.05 V, 4 MCD, 2, 14.2 MM
| Part | Package / Case [x] | Package / Case [x] | Package / Case | Number of Characters | Power Dissipation (Max) [Max] | Color | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Current - Test | Wavelength - Peak | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Display Type | Common Pin | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 15.24 mm | 0.6 in | 18-DIP | 2 | 62.5 mW | Red | 2.05 V | 4 mcd | 0.56 in | 14.22 mm | 20 mA | 640 nm | 0.315 in | 0.984 " | 0.732 " | 8 mm | 18.6 mm | 25 mm | 7-Segment | Common Cathode | |
 Broadcom Limited | 15.24 mm | 0.6 in | 18-DIP | 2 | Yellow | 2.1 V | 2.3 mcd | 0.56 in | 14.22 mm | 20 mA | 589 nm | 0.315 in | 0.984 " | 0.732 " | 8 mm | 18.6 mm | 25 mm | 7-Segment | Common Cathode | 45 mW |
