892-049 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 49POS 0.100

...

Part	Number of Positions	Mounting Type	Card Type	Number of Rows	Color	Termination	Read Out	Material - Insulation	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Termination Rows	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Finish	Gender	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-049-542-107	49	Through Hole	Non Specified - Single Edge	1	Black	Wire Wrap	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin
EDAC Inc. 892-049-541-102	49	Through Hole	Non Specified - Single Edge	1	Black	Wire Wrap	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount Top Opening Unthreaded	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	3.25 mm	0.128 "

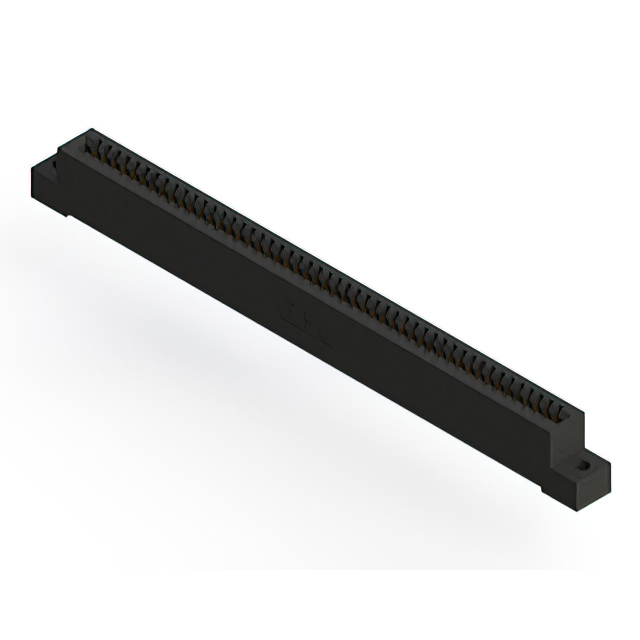

EDAC Inc. 892-049-521-102	49	Through Hole	Non Specified - Single Edge	1	Black	Solder	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount Top Opening Unthreaded	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	3.25 mm	0.128 "
EDAC Inc. 892-049-542-112	49	Through Hole	Non Specified - Single Edge	1	Black	Wire Wrap	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount Side Opening Unthreaded	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	3.25 mm	0.128 "
EDAC Inc. 892-049-523-104	49	Through Hole	Non Specified - Single Edge	1	Black	Solder	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount Top Opening Unthreaded	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	3.96 mm	0.156 "
EDAC Inc. 892-049-520-102	49	Through Hole	Non Specified - Single Edge	1	Black	Solder	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount Top Opening Unthreaded	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	3.25 mm	0.128 "
EDAC Inc. 892-049-544-103	49	Through Hole	Non Specified - Single Edge	1	Black	Wire Wrap	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Floating Bobbin Flush Mount	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	2.95 mm	0.116 "
EDAC Inc. 892-049-520-104	49	Through Hole	Non Specified - Single Edge	1	Black	Solder	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount Top Opening Unthreaded	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	3.96 mm	0.156 "
EDAC Inc. 892-049-541-103	49	Through Hole	Non Specified - Single Edge	1	Black	Wire Wrap	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Floating Bobbin Flush Mount	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	2.95 mm	0.116 "
EDAC Inc. 892-049-541-112	49	Through Hole	Non Specified - Single Edge	1	Black	Wire Wrap	Single	Polyphenylene Sulfide (PPS)	Copper Alloy	125 °C	-40 C	Flush Mount Side Opening Unthreaded	1	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Gold	Female	Cantilever	0.25 Ám	10 Áin	3.25 mm	0.128 "
