19340060 Series
Manufacturer: HARTING
Beta
⌘K
HAN HVE HOOD TOP ENTRY 4 PEGS M25 ROHS COMPLIANT: NA
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Housing Color | Style | Thread Size | Housing Finish | Housing Material | Connector Type | Lock Location | Ingress Protection | Size | Operating Temperature [Max] | Operating Temperature [Min] | Features | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 93.5 mm | 1.772 in | 3.681 in | 43 mm | 45 mm | 1.693 " | Gray | Top Entry | M25 | Powder Coated | Aluminum Die Cast | Hood | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 16 B | 125 °C | -40 C | |||
 HARTING | 93.5 mm | 1.866 " | 3.681 in | 43 mm | 47.4 mm | 1.693 " | Gray | Bottom Entry Top or Bottom Entry | M25 | Powder Coated | Aluminum Die Cast | Hood - Coupling | Locking Clip (2) on Hood Top | IP65 - Dust Tight Water Resistant | 16 B | 125 °C | -40 C | Cable to Cable | ||
 HARTING | 3.681 in 93.5 mm | 1.693 " 43 mm | 2.461 in 62.5 mm | Gray | Side Entry | M25 | Powder Coated | Aluminum Die Cast | Hood | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 16 B | 125 °C | -40 C | ||||||

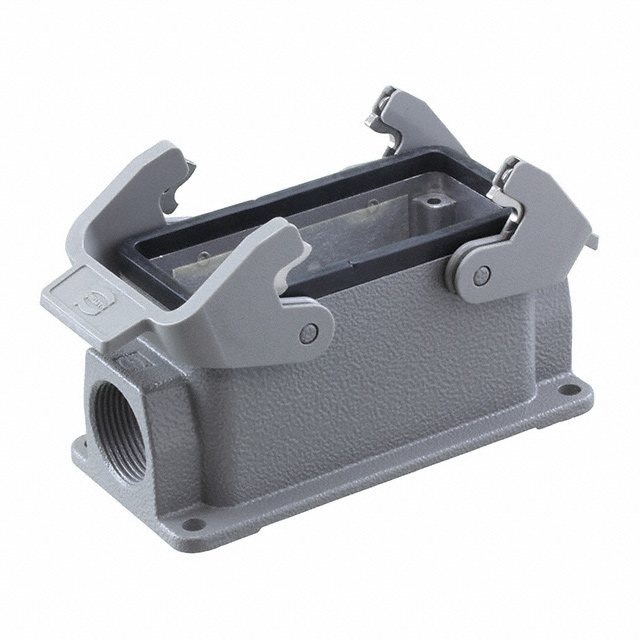

 HARTING | 117 mm | 2.205 " | 4.606 in | 2.244 " | Gray | Side Entry | M25 | Powder Coated | Aluminum Die Cast | Base - Box Mount | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 16 B | 125 °C | -40 C | Feed Through | 57 mm | 56 mm | ||
HARTING | 93.5 mm | 1.866 " | 3.681 in | 43 mm | 47.4 mm | 1.693 " | Gray | Bottom Entry Top or Bottom Entry | M32 | Powder Coated | Aluminum Die Cast | Hood - Coupling | Locking Clip (2) on Hood Top | IP65 - Dust Tight Water Resistant | 16 B | 125 °C | -40 C | Cable to Cable |
