90101 Series
Manufacturer: Preci-Dip
Beta
⌘K

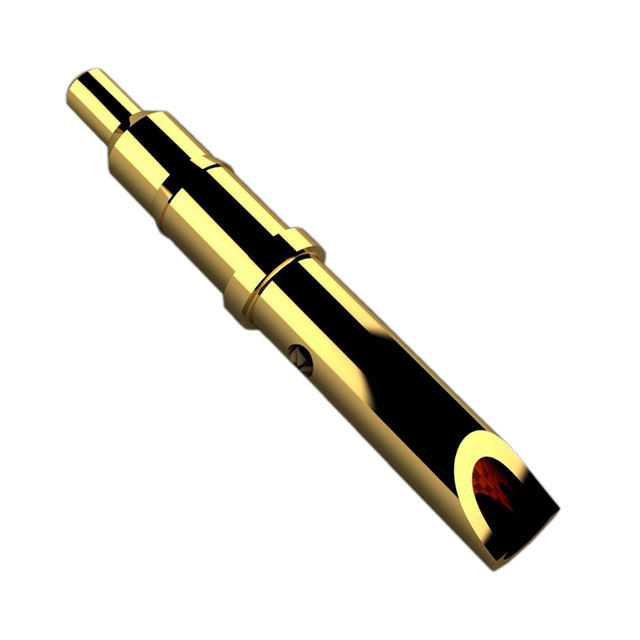

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Minimum Working Height | Minimum Working Height | Mounting Type | Mating Cycles | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 20.39 gf | 5.65 mm | 0.222 in | 3 A | 0.04 in | 1.02 mm | Brass Alloy | 1.7 mm | 0.067 " | 0.25 Ám | 10 Áin | Gold | 0.173 in | 4.4 mm | Solder Cup Through Hole | 40000 | Sleeve & Plunger (Pogo Pins) |
