1274568 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

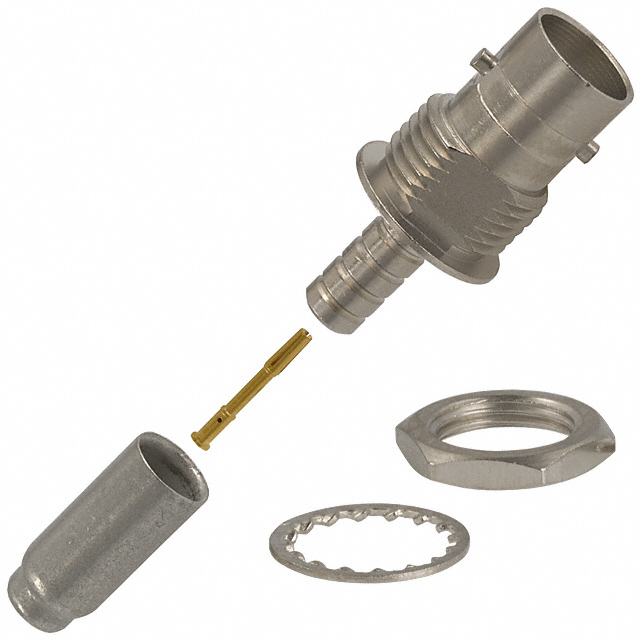

CONN MINI BNC JCK STR 75 OHM
| Part | Includes | Dielectric Material | Body Material | Voltage Rating | Body Finish | Mating Cycles | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Impedance | Center Contact Material | Housing Color | Frequency - Max [Max] | Mounting Feature | Connector Type | Mounting Type | Number of Ports | Shield Termination | Contact Termination | Cable Group | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | Brass | 300 VDC | Nickel | 500 | Gold | 85 °C | -40 C | BNC Mini | 75 Ohms | Phosphor Bronze | Silver | 2 GHz | Bulkhead - Front Side Nut | Female Socket Jack | Panel Mount | 1 | Crimp | Crimp | RG-179 | Bayonet Lock |
