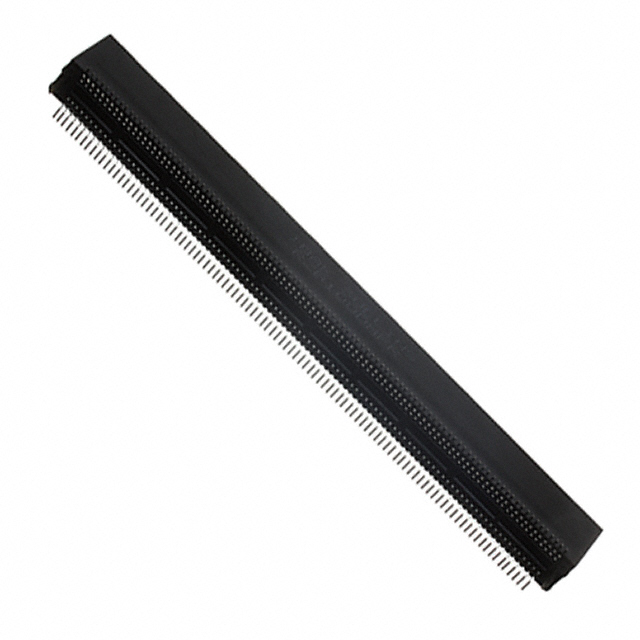

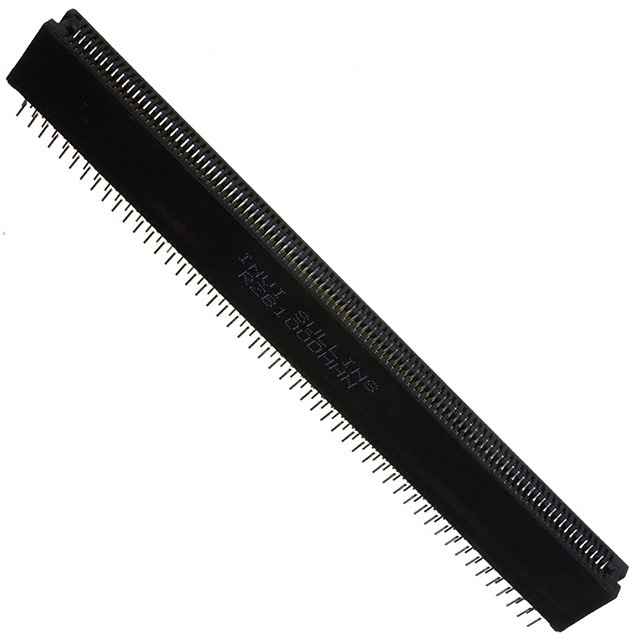

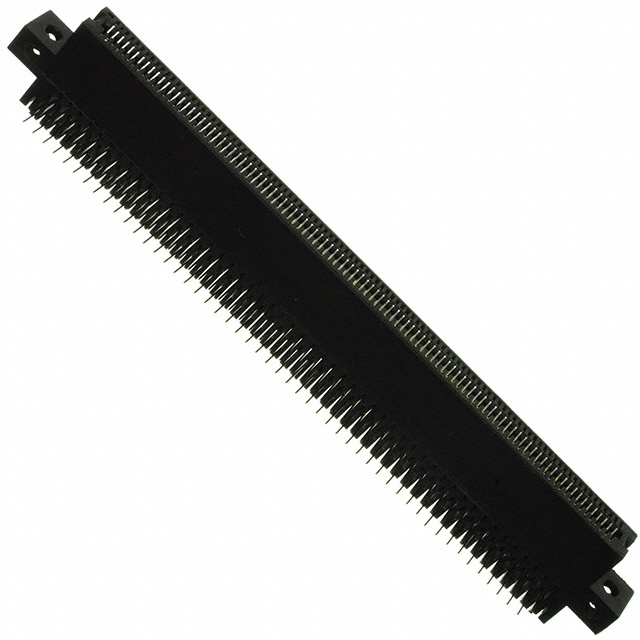

RZB100 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FML 200POS 0.050
| Part | Material - Insulation | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Number of Positions/Bay/Row [custom] | Mounting Type | Number of Positions | Features | Termination | Card Type | Pitch | Pitch | Color | Read Out | Gender | Contact Finish | Number of Rows [custom] | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | 100 | Board Edge Straddle Mount | 200 | Card Extender | Solder | Non Specified - Dual Edge | 0.05 in | 1.27 mm | Black | Dual | Female | Gold | 2 | Phosphor Bronze | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | 100 | Right Angle Through Hole | 200 | Solder Staggered | Non Specified - Dual Edge | 0.05 in | 1.27 mm | Black | Dual | Female | Gold | 2 | Phosphor Bronze | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | |
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | 100 | Through Hole | 200 | Solder Staggered | Non Specified - Dual Edge | 0.05 in | 1.27 mm | Black | Dual | Female | Gold | 2 | Phosphor Bronze | ||||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | 100 | Surface Mount | 200 | Board Lock | Solder | Non Specified - Dual Edge | 0.05 in | 1.27 mm | Black | Dual | Female | Gold | 2 | Phosphor Bronze |
