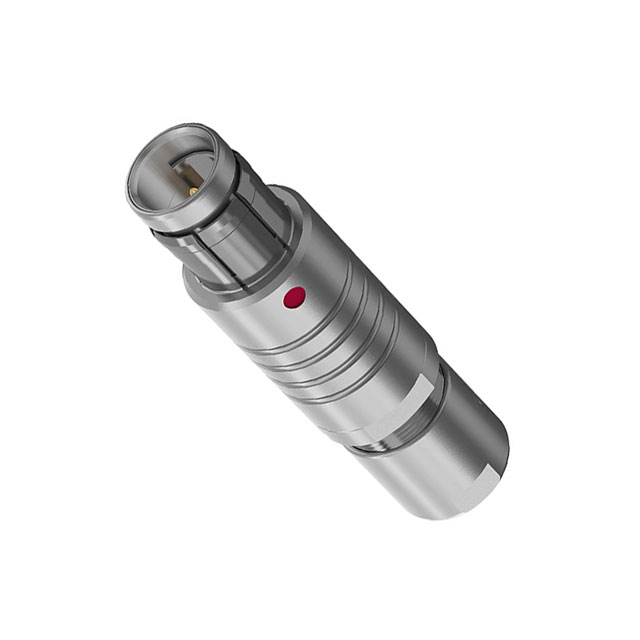

S10F1C-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 5P GOLD SLDR CUP
| Part | Shell Material | Color | Orientation [custom] | Shell Finish | Contact Finish - Mating | Mounting Type | Shielding | Connector Type | Shell Size - Insert [custom] | Primary Material | Applications | Contact Material | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Insert Material | Material Flammability Rating | Features | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Current Rating (Amps) | Ingress Protection | Backshell Material, Plating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Shielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 5 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.177 " | 0.157 in | 4 mm | 4.5 mm | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | ||
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Unshielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 4 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.138 in | 0.118 in | 3 mm | 3.5 mm | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | 300 VDC | |
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Shielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 9 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.197 in | 0.177 in | 4.5 mm | 5 mm | 4 A | IP50 - Dust Protected | Brass Chrome over Nickel | ||
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Unshielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 4 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.197 in | 0.177 in | 4.5 mm | 5 mm | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | 300 VDC | |
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Shielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 9 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.177 " | 0.157 in | 4 mm | 4.5 mm | 4 A | IP50 - Dust Protected | Brass Chrome over Nickel | ||
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Shielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.197 in | 0.177 in | 4.5 mm | 5 mm | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | |||
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Unshielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.118 " | 0.098 in | 2.5 mm | 3 mm | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | 400 V | ||
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Unshielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 5 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.059 in | 0.039 in | 1 mm | 1.5 mm | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | 200 V | |
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Unshielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 7 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.138 in | 0.118 in | 3 mm | 3.5 mm | 4 A | IP50 - Dust Protected | Brass Chrome over Nickel | 300 VDC | |
Brass | Silver | 1 | Chrome over Nickel | Gold | Free Hanging (In-Line) | Unshielded | Plug Male Pins | 0 | Metal | Industrial Medical Military Testing Equipment & Measurement | Brass | Push-Pull | 120 °C | -40 C | 4 | Polyetheretherketone (PEEK) | UL94 V-0 | Backshell | 0.059 in | 0.039 in | 1 mm | 1.5 mm | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | 300 VDC |
