2823109 Series

Catalog

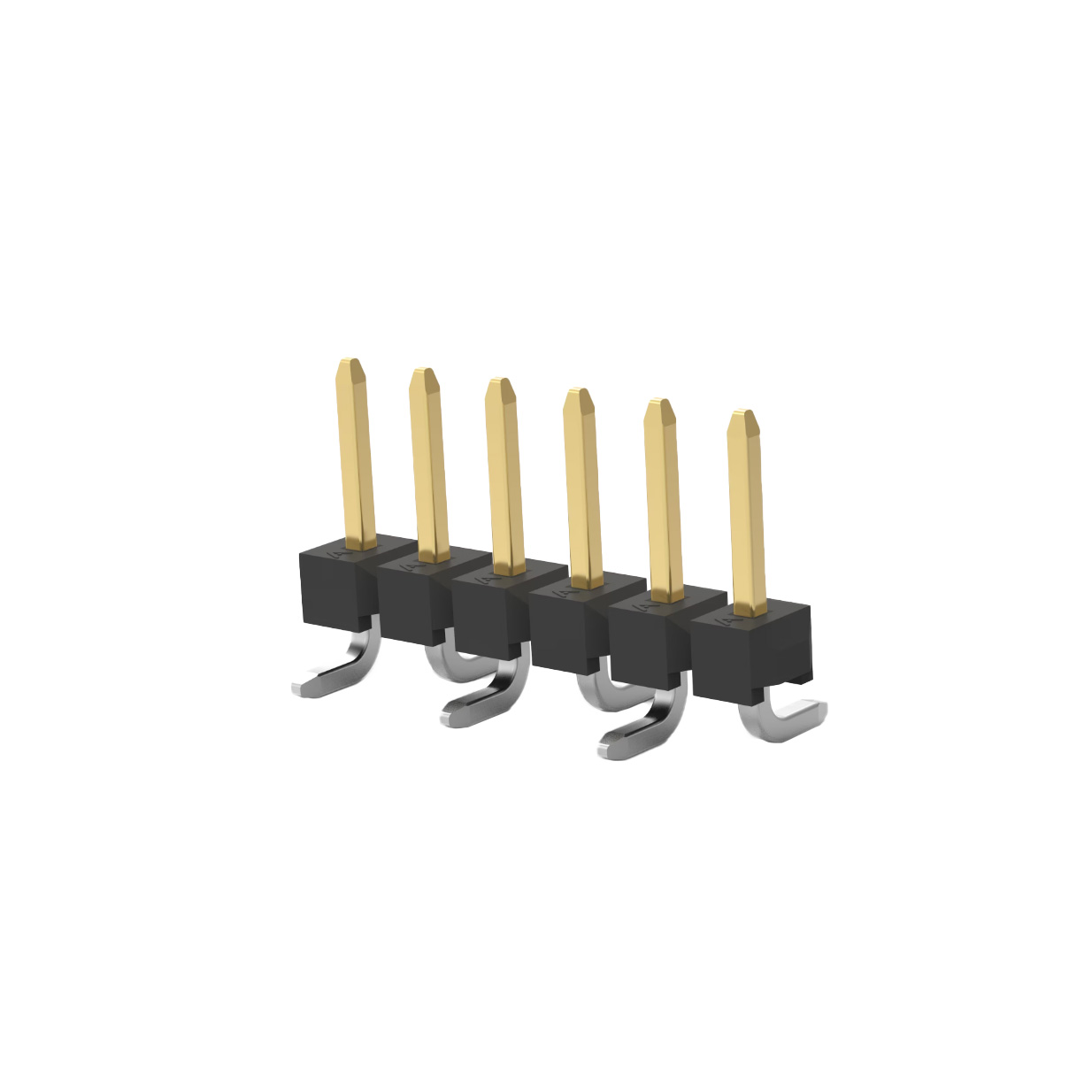

6P,2MM,BRK HDR,SRVT,SMD,0.76AU,T

Part	Voltage Rating	Contact Shape	Contact Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Termination	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Material Flammability Rating	Contact Material	Features	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions Loaded	Contact Finish - Mating	Insulation Material	Shrouding	Insulation Color	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection 2823109-6	125 VAC	Square	Male Pin	4 mm	0.157 in	Breakaway Header	Solder	2 A	0.079 in	2 mm	Surface Mount	UL94 V-0	Phosphor Bronze	Pick and Place	1.5 mm	0.059 "	Gold	All	Gold	Thermoplastic	Unshrouded	Black	Push-Pull	6	30 Áin	0.76 Ám	30 µin	0.76 µm	1	125 °C	-40 °C
TE Connectivity Raychem Cable Protection 2823109-8	125 VAC	Square	Male Pin	4 mm	0.157 in	Breakaway Header	Solder	2 A	0.079 in	2 mm	Surface Mount	UL94 V-0	Phosphor Bronze	Pick and Place	1.5 mm	0.059 "	Gold	All	Gold	Thermoplastic	Unshrouded	Black	Push-Pull	8	30 Áin	0.76 Ám	30 µin	0.76 µm	1	125 °C	-40 °C
TE Connectivity Raychem Cable Protection 1-2823109-0	125 VAC	Square	Male Pin	4 mm	0.157 in	Breakaway Header	Solder	2 A	0.079 in	2 mm	Surface Mount	UL94 V-0	Phosphor Bronze	Pick and Place	1.5 mm	0.059 "	Gold	All	Gold	Thermoplastic	Unshrouded	Black	Push-Pull	10	30 Áin	0.76 Ám	30 µin	0.76 µm	1	125 °C	-40 °C
