VRR40L Series

Manufacturer: KEMET

Catalog

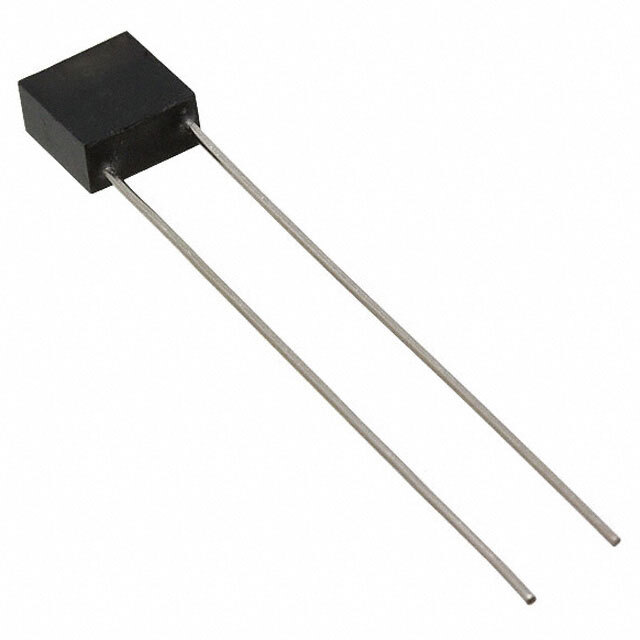

CAP CER 0.25UF 500V X7R RADIAL

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Voltage - Rated	Mounting Type	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Capacitance	Tolerance	Lead Spacing	Lead Spacing	Applications	Lead Style
KEMET VRR40L254KGS	0.35 in	8.89 mm	6.98 mm	0.275 in	Radial	500 V	Through Hole	X7R	0.4 in	10.16 mm	200 °C	-55 C	High Temperature High Voltage	0.25 µF	10 %	6.35 mm	0.25 in	General Purpose	Straight
KEMET VRR40L274KGS	0.35 in	8.89 mm	6.98 mm	0.275 in	Radial	500 V	Through Hole	X7R	0.4 in	10.16 mm	200 °C	-55 C	High Temperature High Voltage	0.27 µF	10 %	6.35 mm	0.25 in	General Purpose	Straight
