170001 Series
Mega-Fit Receptacle Housing, Dual Row, 10 Circuit, Glow-Wire Capable, Bag
Manufacturer: Molex
Catalog
Mega-Fit Receptacle Housing, Dual Row, 10 Circuit, Glow-Wire Capable, Bag
Beta
⌘K
Mega-Fit Receptacle Housing, Dual Row, 10 Circuit, Glow-Wire Capable, Bag
Mega-Fit Receptacle Housing, Dual Row, 10 Circuit, Glow-Wire Capable, Bag
Mega-Fit Receptacle Housing, Dual Row, 10 Circuit, Glow-Wire Capable, Bag
| Part | Color | Features | Number of Positions | Fastening Type | Pitch [x] | Pitch [x] | Number of Rows | Contact Type | Insulation Material | Mounting Type | Row Spacing | Row Spacing | Contact Termination | Connector Type | Note | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

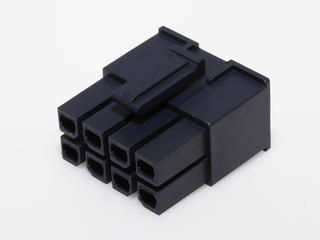

 Molex | Black | Glow Wire Compliant | 8 | Latch Lock | 0.224 in | 5.7 mm | 2 | Female Socket | Nylon Polyamide (PA) | Free Hanging (In-Line) | 0.224 in | 5.7 mm | Crimp | Receptacle | Contacts Not Included | -40 °C | 120 °C |

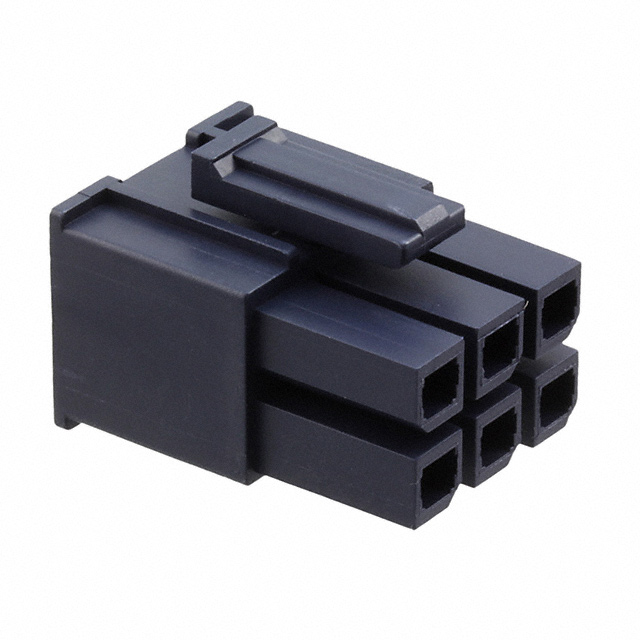

 Molex | Black | Glow Wire Compliant | 6 | Latch Lock | 0.224 in | 5.7 mm | 2 | Female Socket | Nylon Polyamide (PA) | Free Hanging (In-Line) | 0.224 in | 5.7 mm | Crimp | Receptacle | Contacts Not Included | -40 °C | 120 °C |

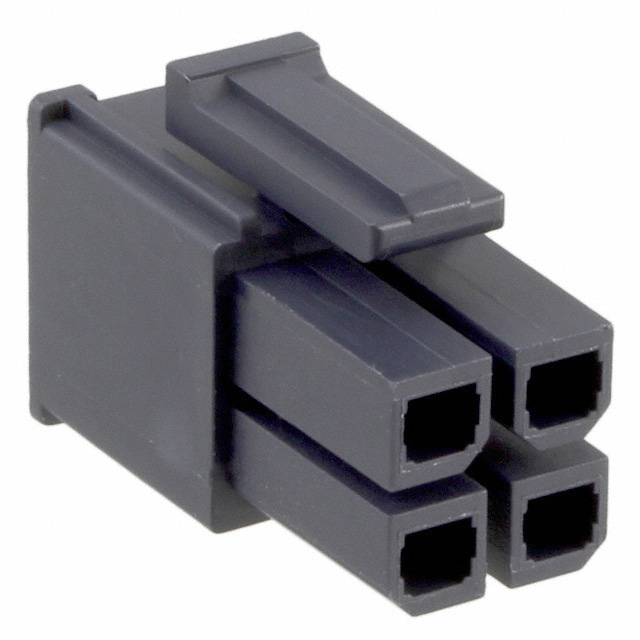

 Molex | Black | Glow Wire Compliant | 4 | Latch Lock | 0.224 in | 5.7 mm | 2 | Female Socket | Nylon Polyamide (PA) | Free Hanging (In-Line) | 0.224 in | 5.7 mm | Crimp | Receptacle | Contacts Not Included | -40 °C | 120 °C |
