1301 Series

Catalog

TERMINAL, RING TONGUE, 1/4", 14AWG, BLU

Part	Material - Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Contact Finish	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Color	Thickness	Thickness	Insulation	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Features	Width - Outer Edges [x]

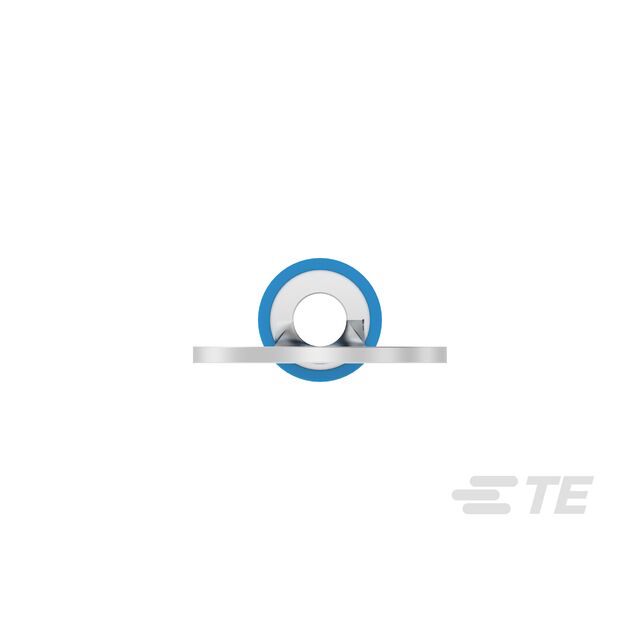

TE Connectivity AMP Connectors 130114	Nylon Polyamide (PA)	3.81 mm	2.67 mm	0.105 "	0.15 in	Tin	Copper	11.91 mm	0.469 "	Crimp	Free Hanging (In-Line)	14 AWG	16 AWG	Circular	Blue	0.79 mm	0.031 in	Insulated	27.5 mm	1.083 "

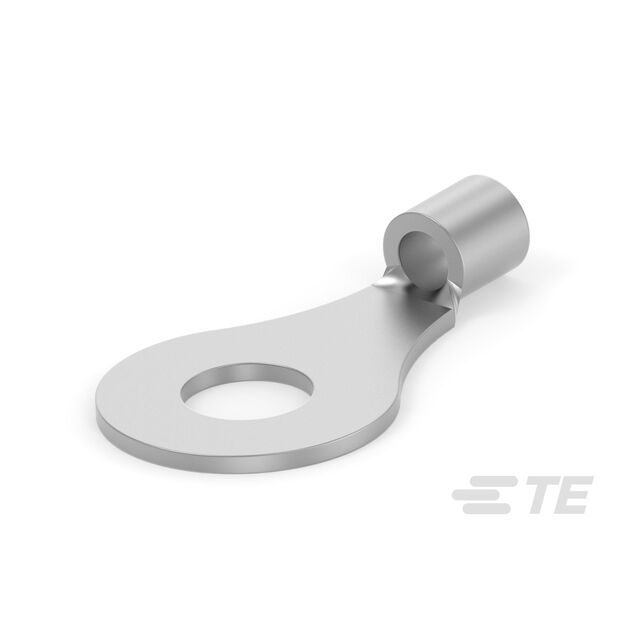

TE Connectivity AMP Connectors 130128						Tin	Copper	11.91 mm	0.469 "	Crimp	Free Hanging (In-Line)	14 AWG	16 AWG	Circular		0.79 mm	0.031 in	Non-Insulated	21.84 mm	0.86 "	M5 Stud	Brazed Seam Serrated Termination

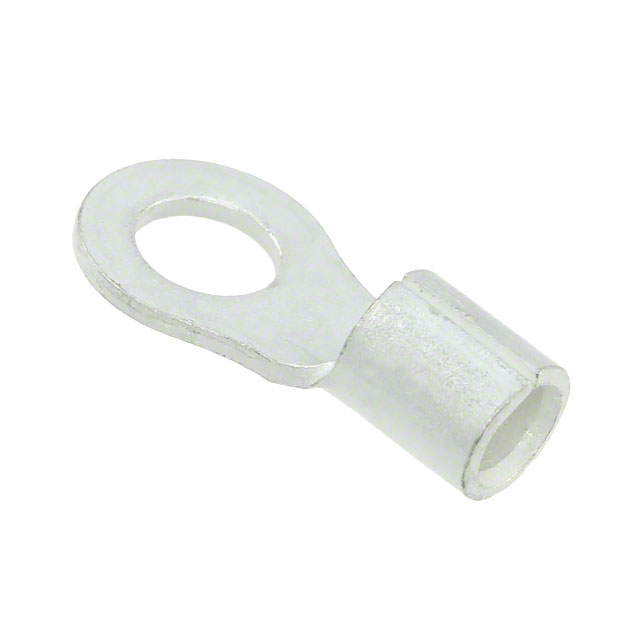

TE Connectivity AMP Connectors 130191						Tin	Copper	0.374 in		Crimp	Free Hanging (In-Line)	10 AWG	12 AWG	Circular		0.99 mm	0.039 in	Non-Insulated	19.1 mm	0.752 in	M5 Stud		9.5 mm
TE Connectivity AMP Connectors 130191						Tin	Copper	9.53 mm	0.375 in	Crimp	Free Hanging (In-Line)	10 AWG	12 AWG	Circular		0.99 mm	0.039 in	Non-Insulated	19.43 mm	0.765 in	M5 Stud
