GEC36D Series

Manufacturer: Sullins Connector Solutions

Catalog

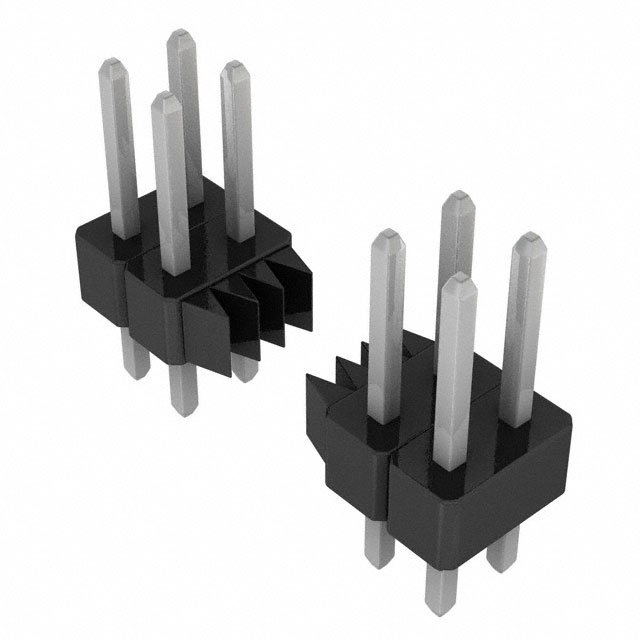

CONN HEADER VERT 72POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Termination	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions	Fastening Type	Insulation Height	Insulation Height	Insulation Color	Contact Material	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Current Rating (Amps)	Mounting Type	Contact Length - Post	Contact Length - Post	Style	Contact Type	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions GEC36DAAN	2.54 µm	100 µin	Header Breakaway	0.23 in	5.84 mm	UL94 V-0	Solder	11.43 mm	0.45 in	72	Push-Pull	0.1 in	2.54 mm	Black	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	3 A	Through Hole	3.05 mm	0.12 in	Board to Board Cable	Male Pin	2	100 çin	2.54 çm	0.1 "	2.54 mm	Square	Tin	150 °C	-65 ░C	All
Sullins Connector Solutions GEC36DAGN	2.54 µm	100 µin	Header Breakaway	0.23 in	5.84 mm	UL94 V-0	Solder			72	Push-Pull	0.1 in	2.54 mm	Black	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	3 A	Through Hole	18.29 mm	0.72 "	Board to Board Cable	Male Pin	2	100 çin	2.54 çm	0.1 "	2.54 mm	Square	Tin	150 °C	-65 ░C	All	26.67 mm	1.05 in
Sullins Connector Solutions GEC36DADN	2.54 µm	100 µin	Header Breakaway	0.23 in	5.84 mm	UL94 V-0	Solder	19.05 mm	0.75 in	72	Push-Pull	0.1 in	2.54 mm	Black	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	3 A	Through Hole	10.67 mm	0.42 in	Board to Board Cable	Male Pin	2	100 çin	2.54 çm	0.1 "	2.54 mm	Square	Tin	150 °C	-65 ░C	All
Sullins Connector Solutions GEC36DABN-M30	2.54 µm	100 µin	Header Breakaway	0.23 in	5.84 mm	UL94 V-0	Solder			72	Push-Pull	0.1 in	2.54 mm	Black	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	3 A	Surface Mount			Board to Board Cable	Male Pin	2	100 çin	2.54 çm	0.1 "	2.54 mm	Square	Tin	150 °C	-65 ░C	All
Sullins Connector Solutions GEC36DBAN	2.54 µm	100 µin	Header Breakaway	0.23 in	5.84 mm	UL94 V-0	Solder			72	Push-Pull			Black	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	3 A	Right Angle Through Hole	2.54 mm	0.1 in	Board to Board Cable	Male Pin	2	100 çin	2.54 çm	0.1 "	2.54 mm	Square	Tin	150 °C	-65 ░C	All			6.1 mm	0.24 in
Sullins Connector Solutions GEC36DFBN-M30	2.54 µm	100 µin	Header Breakaway	0.318 in	8.08 mm	UL94 V-0	Solder			72	Push-Pull	0.1 in	2.54 mm	Black	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	3 A	Surface Mount			Board to Board Cable	Male Pin	2	100 çin	2.54 çm	0.1 "	2.54 mm	Square	Tin	150 °C	-65 ░C	All
