LD25S24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

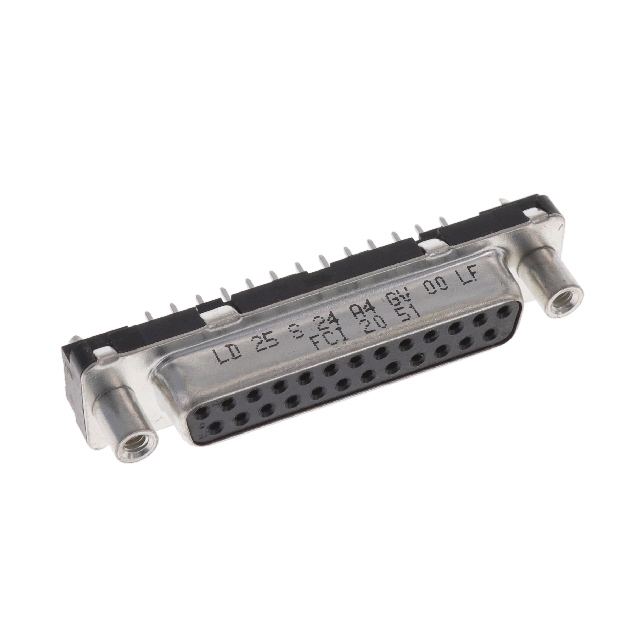

CONN D-SUB RCPT 25POS VERT SLDR
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Dielectric Material | Number of Rows [custom] | Connector Style | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Features | Connector Type | Material Flammability Rating | Number of Positions | Contact Finish | Current Rating (Amps) | Shell Material, Finish | Contact Type | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 250 V | -55 C | 105 ░C | Black | Copper Alloy | Thermoplastic | 2 | D-Sub | Through Hole | B DB | 3 | Solder | Board Lock | Receptacle Female Sockets | UL94 V-0 | 25 | Gold | 5 A | Steel Tin-Nickel Plated | Signal | 4-40 Mating Side Female Screwlock | Flash |
