0911-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

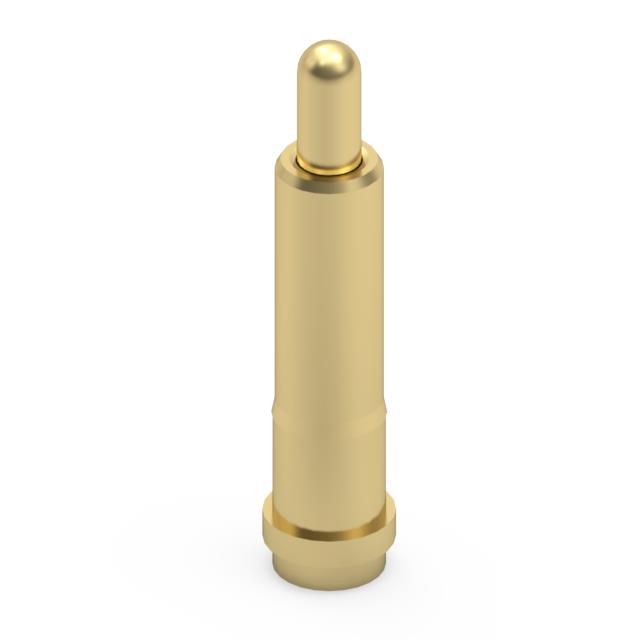

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Minimum Working Height | Minimum Working Height | Contact Type | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Operating Force - Mid Compression | Mounting Type | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.066 in | 1.68 mm | Brass Alloy | 0.295 in | 7.49 mm | 0.81 mm | 0.032 " | Gold | 20 µin | 0.51 µm | 0.24 in | 6.1 mm | Sleeve & Plunger (Pogo Pins) | 25 gf | 6.8 mm | 0.268 in | 5.2 A | 100 gf | Surface Mount | 1000000 |
