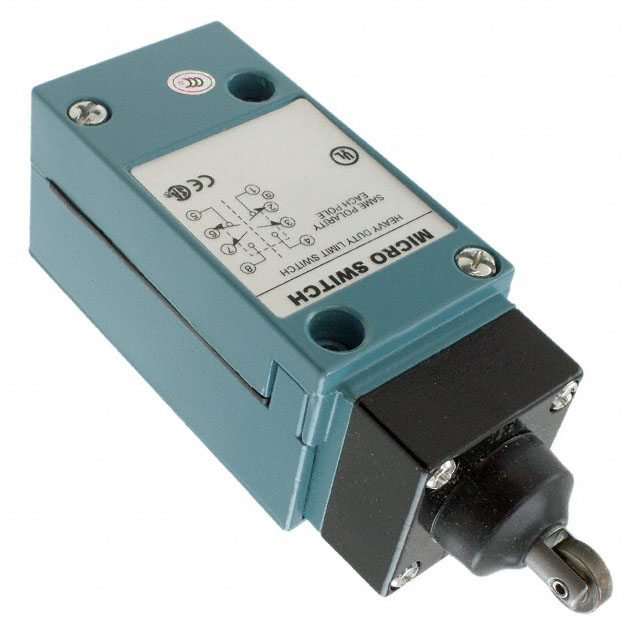

LSD6 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 10A 120V
| Part | Overtravel | Overtravel | Operating Force | Pretravel | Pretravel | Actuator Type | Mounting Type | Current Rating (Amps) | Termination Style | Voltage Rating - DC | Switch Function | Circuit | Differential Travel | Differential Travel | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 4.8 mm | 0.19 in | 1814 gf | 0.071 in | 1.8 mm | Roller Plunger | Chassis Mount | 10 A 800 mA | Plug In | 115 V | On-Mom | DPDT (DB/DM) | 0.5 mm | 0.02 in | 93 °C | -12 °C | 120 V |
