SFSA128 Series

Manufacturer: SWISSBIT

Catalog

SSD 128GB M.2 SLC SATA III 3.3V

Part	Memory Size	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Memory Type	Speed - Write	Form Factor	Speed - Read	Type	Current - Max [Max]	Weight	Weight	Weight [custom]	Weight [custom]	Form Factor	Weight [custom]	Weight [custom]
SWISSBIT SFSA128GM1AA4TO-C-NC-416-STD	128 GB	3.3 V	70 °C	0 °C	60 mm	3.3 mm	22 mm	Solid State Drive (SSD) FLASH - NAND (SLC)	405 MB/s	M.2 Module	520 MB/s	SATA III	750 mA
SWISSBIT SFSA128GM3AA4TO-C-NC-426-STD	128 GB	3.3 V	70 °C	0 °C	60 mm	3.58 mm	22 mm	Solid State Drive (SSD) FLASH - NAND (SLC)	405 MB/s	M.2 Module	520 MB/s	SATA III
SWISSBIT SFSA128GV1AA4TO-I-NC-216-STD	128 GB		85 °C	-40 C	54 mm	4 mm	39 mm	Solid State Drive (SSD) FLASH - NAND (SLC)	405 MB/s	Slim-SATA	520 MB/s	SATA III	575 mA	10 g	0.353 oz
SWISSBIT SFSA128GM3AA4TO-I-NC-426-STD	128 GB	3.3 V	85 °C	-40 C	60 mm	3.58 mm	22 mm	Solid State Drive (SSD) FLASH - NAND (SLC)	405 MB/s	M.2 Module	520 MB/s	SATA III

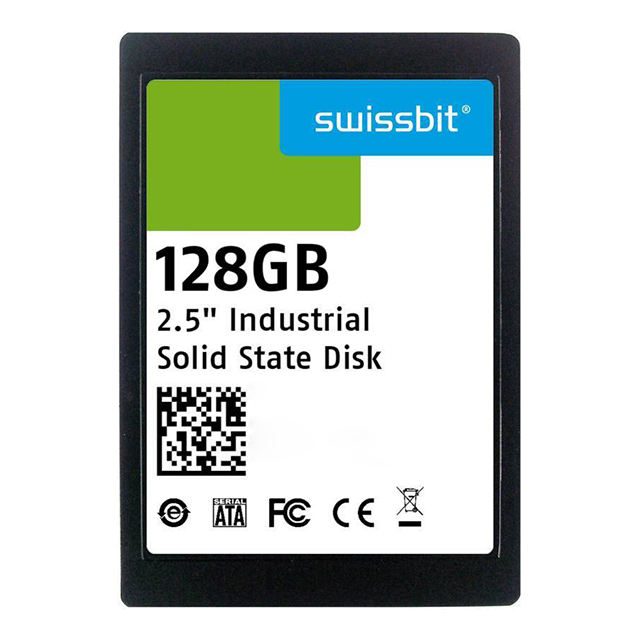

SWISSBIT SFSA128GQ1BJ8TO-I-NU-236-STD	128 GB		85 °C	-40 C	100.2 mm	9.3 mm	2.75 in	Solid State Drive (SSD) FLASH - NAND (SLC)	189 MB/s		247 MB/s	SATA II	480 mA			2.82 oz	80.36 g	2.5 "
SWISSBIT SFSA128GU1AA4TO-I-NC-216-STD	128 GB	3.3 V	85 °C	-40 C	2 in	3.5 mm	29.85 mm	Solid State Drive (SSD) FLASH - NAND (SLC)	405 MB/s	mSATA	520 MB/s	SATA III	730 mA
SWISSBIT SFSA128GQ1BJ8TO-I-NU-236-STC	128 GB		85 °C	-40 C	100.2 mm	9.3 mm	2.75 in	Solid State Drive (SSD) FLASH - NAND (SLC)	189 MB/s		247 MB/s	SATA II	480 mA			2.82 oz	80.36 g	2.5 "

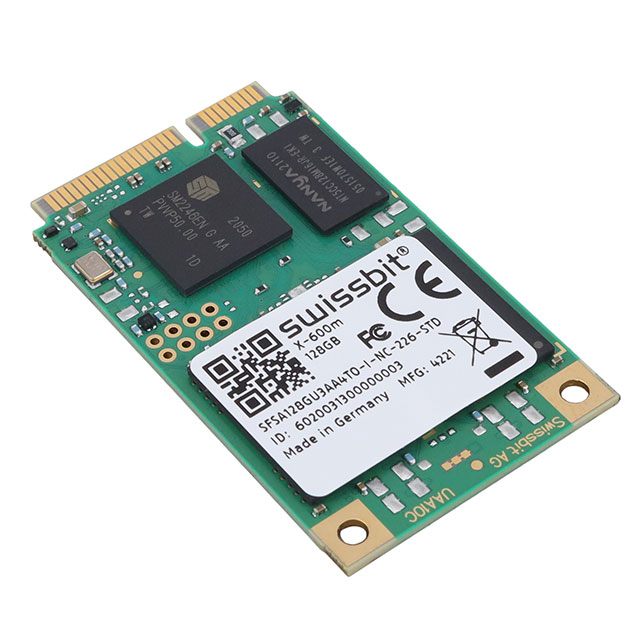

SWISSBIT SFSA128GU3AA4TO-I-NC-226-STD	128 GB	3.3 V	85 °C	-40 C	2 in	3.5 mm	29.85 mm	Solid State Drive (SSD) FLASH - NAND (SLC)	405 MB/s	mSATA	520 MB/s	SATA III
SWISSBIT SFSA128GQ1AA4TO-C-NC-226-STD	128 GB		70 °C	0 °C	100.1 mm	7 mm	2.75 in	Solid State Drive (SSD) FLASH - NAND (SLC)	405 MB/s		520 MB/s	SATA III						2.5 "	70.38 g	2.47 oz
SWISSBIT SFSA128GQ1BJ8TO-C-NU-236-STD	128 GB		70 °C	0 °C	100.2 mm	9.3 mm	2.75 in	Solid State Drive (SSD) FLASH - NAND (SLC)	189 MB/s		247 MB/s	SATA II	480 mA			2.82 oz	80.36 g	2.5 "
