ACNU-4803 Series

Catalog

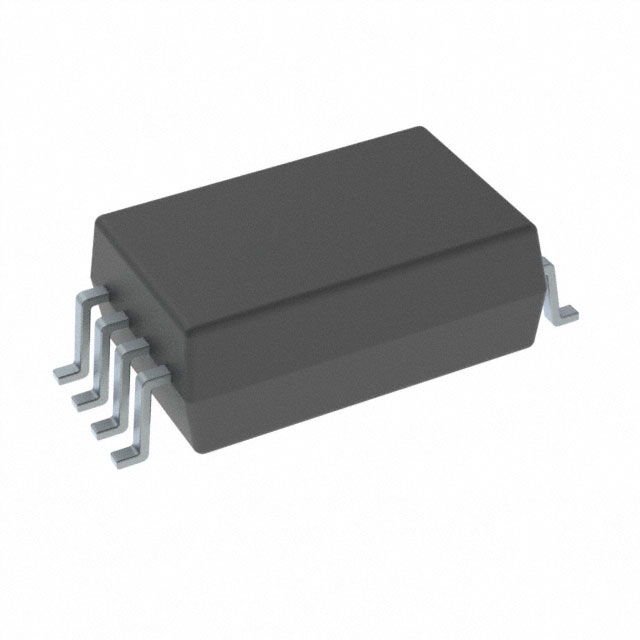

OPTOISO 5KV 1CH GATE DVR 8SO

Part	Mounting Type	Number of Channels [custom]	Technology	Package / Case [x]	Package / Case	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Common Mode Transient Immunity (Min) [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Approval Agency	Current - DC Forward (If) (Max) [Max]	Pulse Width Distortion (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Typ)
Broadcom Limited ACNU-4803-500E	Surface Mount	1	Optical Coupling	0.378 in 9.6 mm	8-SOIC	8-SO Stretched	6 ns	6 ns	50 kV/çs	125 mA	125 mA	4.5 V	30 V	120 ns	150 ns	CSA UL	20 mA	90 ns	-40 C	105 ░C	1.5 V
Broadcom Limited ACNU-4803-000E	Surface Mount	1	Optical Coupling	0.378 in 9.6 mm	8-SOIC	8-SO Stretched	6 ns	6 ns	50 kV/çs	125 mA	125 mA	4.5 V	30 V	120 ns	150 ns	CSA UL	20 mA	90 ns	-40 C	105 ░C	1.5 V
