67050 Series

Catalog

HOOK-UP STRND 20AWG RED 164'

Part	Cable Type	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Ratings	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE 67050 RD321	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Red	UL Style 11028	600 V	1.42 mm	0.056 in	164 ft	50 m	-40 °C	105 ░C	28	0.0063 in
ALPHA WIRE 67050 YL033	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Yellow	UL Style 11028	600 V	1.42 mm	0.056 in	328.1 ft	100 m	-40 °C	105 ░C	28	0.0063 in
ALPHA WIRE 67050 GR321	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Green	UL Style 11028	600 V	1.42 mm	0.056 in	164 ft	50 m	-40 °C	105 ░C	28	0.0063 in
ALPHA WIRE 67050 VI033	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Violet	UL Style 11028	600 V	1.42 mm	0.056 in	328.1 ft	100 m	-40 °C	105 ░C	28	0.0063 in
ALPHA WIRE 67050 GY034	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Green Yellow Stripe	UL Style 11028	600 V	1.42 mm	0.056 in			-40 °C	105 ░C	28	0.0063 in	500 m	1640.4 ft
ALPHA WIRE 67050 BR033	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Brown	UL Style 11028	600 V	1.42 mm	0.056 in	328.1 ft	100 m	-40 °C	105 ░C	28	0.0063 in

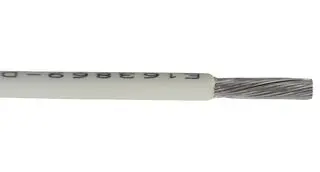

ALPHA WIRE 67050 WH321	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in		UL Style 11028	600 V	1.42 mm	0.056 in	164 ft	50 m	-40 °C	105 ░C	28	0.0063 in
ALPHA WIRE 67050 YL321	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Yellow	UL Style 11028	600 V	1.42 mm	0.056 in	164 ft	50 m	-40 °C	105 ░C	28	0.0063 in
ALPHA WIRE 67050 BR034	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Brown	UL Style 11028	600 V	1.42 mm	0.056 in			-40 °C	105 ░C	28	0.0063 in	500 m	1640.4 ft
ALPHA WIRE 67050 BL034	Hook-Up	Polyphenylene Ether Modified (mPPE)	20 AWG	Copper Tinned	0.25 mm	0.01 in	Blue	UL Style 11028	600 V	1.42 mm	0.056 in			-40 °C	105 ░C	28	0.0063 in	500 m	1640.4 ft
