696047 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

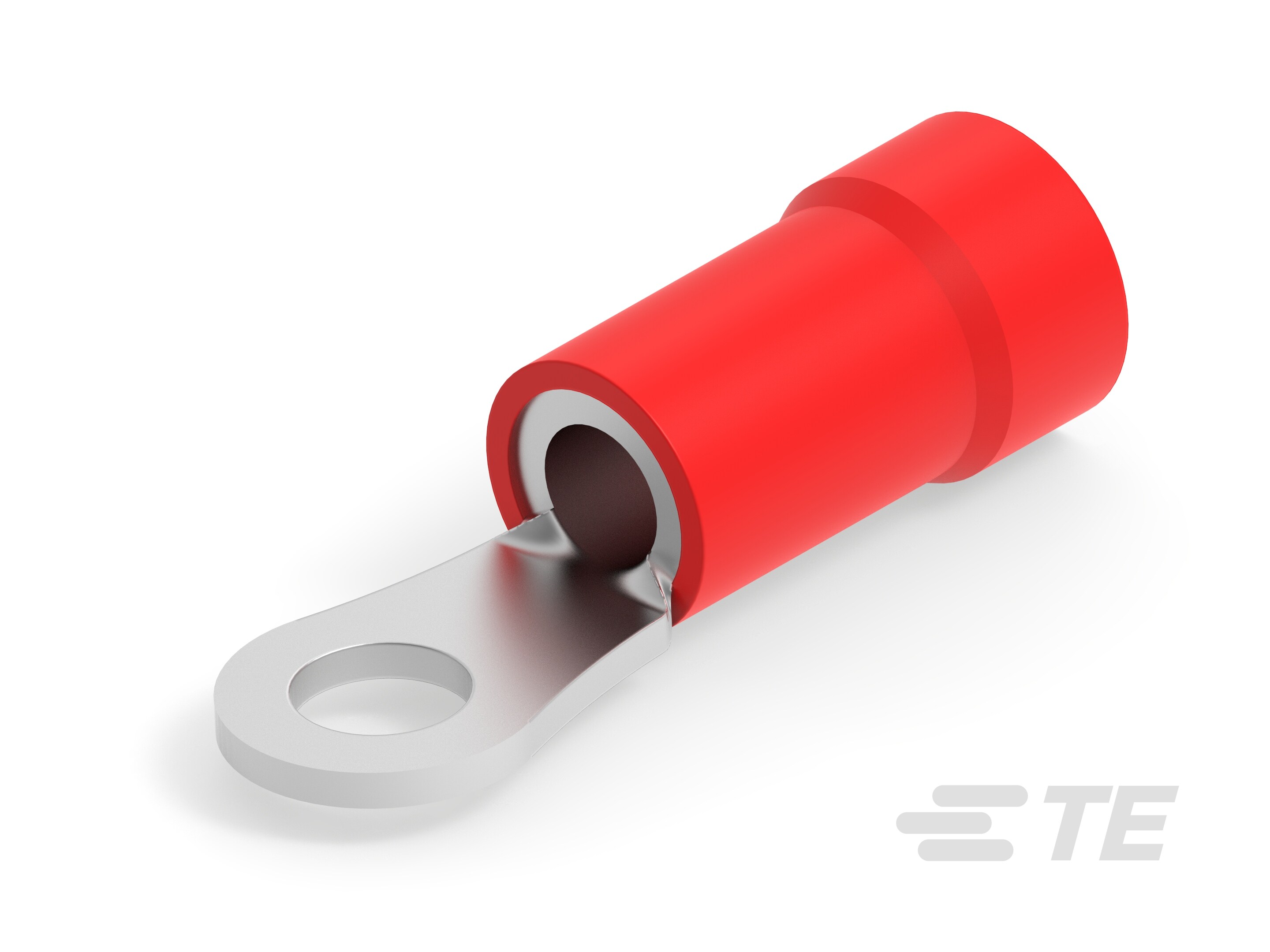

CONN RING CIRC 10-12AWG #8 CRIMP
| Part | Material - Insulation | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation | Mounting Type | Length - Overall | Length - Overall | Terminal Type | Contact Material | Stud/Tab Size | Width - Outer Edges [x] | Width - Outer Edges [x] | Features | Termination | Color | Thickness | Thickness | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Poly-Vinyl Chloride (PVC) | 3.81 mm | 0.15 " | 6.35 mm | 0.25 " | Insulated | Free Hanging (In-Line) | 26.97 mm | 1.062 in | Circular | Copper | 8 Stud | 0.312 in | 7.92 mm | Serrated Termination | Crimp | Red | 0.04 in | 1.02 mm | Tin | 10 AWG | 12 AWG |
