055487 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 13POS 2MM

Part	Contact Type	Features	Number of Positions Loaded	Mated Stacking Heights	Mounting Type	Insulation Color	Fastening Type	Shrouding	Insulation Material	Style	Applications	Material Flammability Rating	Contact Shape	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Contact Length - Post	Contact Length - Post	Termination	Number of Rows	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post
Molex 0554871319	Male Pin	Board Guide	All	17.7 mm	Through Hole	White	Latch Lock	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	Automotive General Purpose Industrial	UL94 V-0	Square	Header	0.079 in	2 mm	Brass	0.13 in	3.3 mm	Kinked Pin Solder	1	13	15.35 mm	0.604 in	0.144 in	3.66 mm	Tin
Molex 0554870319	Male Pin	Board Guide	All	17.7 mm	Through Hole	White	Latch Lock	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	Automotive General Purpose Industrial	UL94 V-0	Square	Header	0.079 in	2 mm	Brass	0.13 in	3.3 mm	Kinked Pin Solder	1		15.35 mm	0.604 in	0.144 in	3.66 mm	Tin

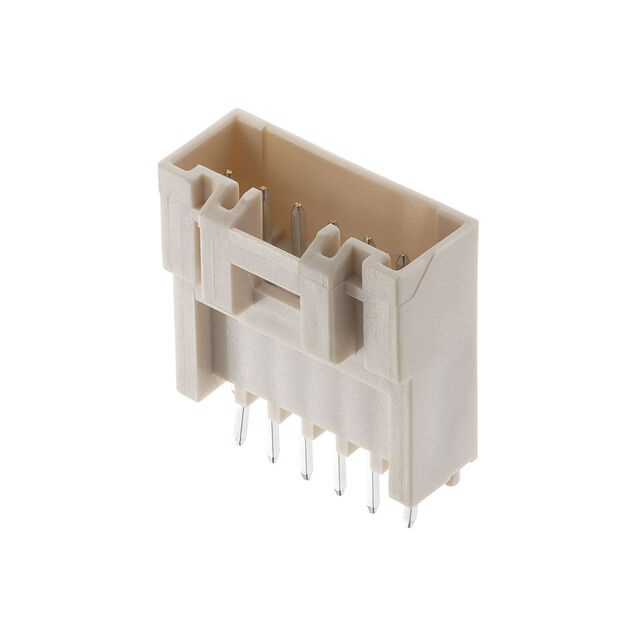

Molex 0554871519	Male Pin	Board Guide	All	17.7 mm	Through Hole	White	Latch Lock	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	Automotive General Purpose Industrial	UL94 V-0	Square	Header	0.079 in	2 mm	Brass	0.13 in	3.3 mm	Kinked Pin Solder	1	15	15.35 mm	0.604 in	0.144 in	3.66 mm	Tin
Molex 0554870819	Male Pin	Board Guide	All	17.7 mm	Through Hole	White	Latch Lock	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	Automotive General Purpose Industrial	UL94 V-0	Square	Header	0.079 in	2 mm	Brass	0.13 in	3.3 mm	Kinked Pin Solder	1	8	15.35 mm	0.604 in	0.144 in	3.66 mm	Tin
Molex 0554871419	Male Pin	Board Guide	All	17.7 mm	Through Hole	White	Latch Lock	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	Automotive General Purpose Industrial	UL94 V-0	Square	Header	0.079 in	2 mm	Brass	0.13 in	3.3 mm	Kinked Pin Solder	1	14	15.35 mm	0.604 in	0.144 in	3.66 mm	Tin

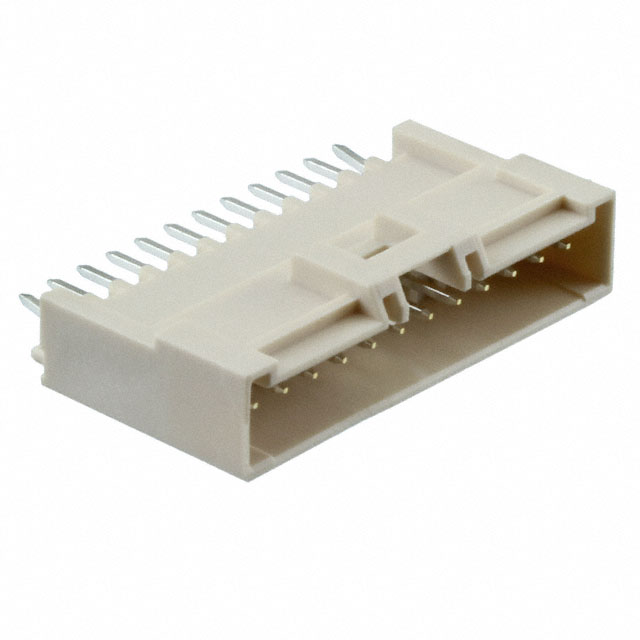

Molex 0554871219	Male Pin	Board Guide	All	17.7 mm	Through Hole	White	Latch Lock	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	Automotive General Purpose Industrial	UL94 V-0	Square	Header	0.079 in	2 mm	Brass	0.13 in	3.3 mm	Kinked Pin Solder	1	12	15.35 mm	0.604 in	0.144 in	3.66 mm	Tin
