1658014 Series

Catalog

CONN DIFF ARRAY PLG 28P SMD GOLD

Part	Contact Finish	Number of Positions	Connector Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Features	Height Above Board	Height Above Board
TE Connectivity AMP Connectors 5-1658014-1	Gold	28	Differential Pair Array Male	0.8 mm	0.031 in	0.25 Ám	10 Áin	Surface Mount	2	8 mm	7.06 mm	0.278 in	Board Guide Ground Bus (Plane)
TE Connectivity AMP Connectors 6-1658014-3	Gold	120	Plug Outer Shroud Contacts	0.8 mm	0.031 in	0.25 Ám	10 Áin	Surface Mount	2	8 mm	7.06 mm	0.278 in	Board Guide Ground Bus (Plane)
TE Connectivity AMP Connectors 1658014-3	Gold	120	Plug Outer Shroud Contacts	0.8 mm	0.031 in	0.25 Ám	10 Áin	Surface Mount	2	8 mm	7.06 mm	0.278 in	Board Guide Ground Bus (Plane)

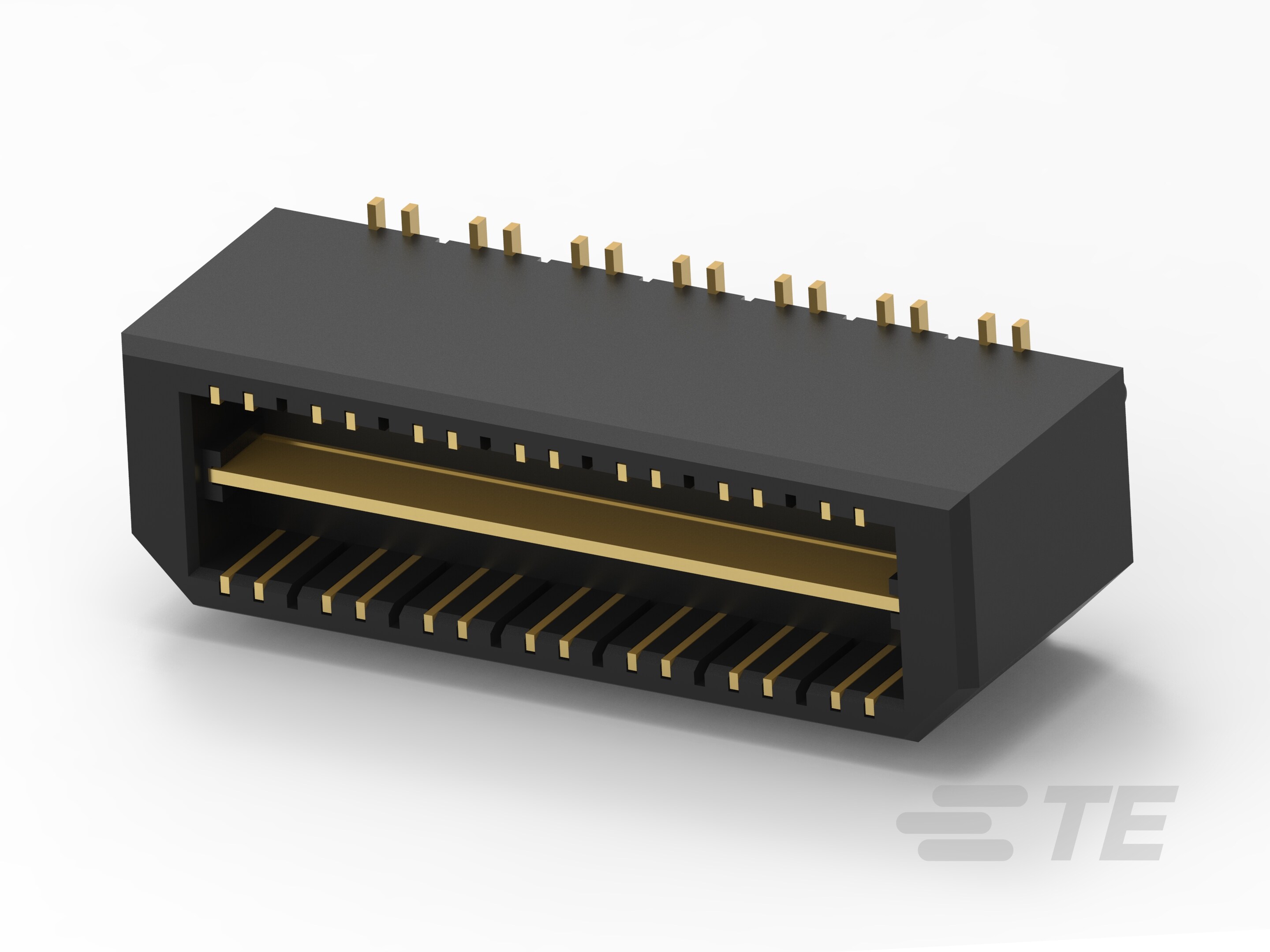

TE Connectivity AMP Connectors 7-1658014-1	Gold	28	Plug Outer Shroud Contacts	0.8 mm	0.031 in	2.54 µm	100 µin	Surface Mount	2	8 mm			Board Guide Ground Bus (Plane)	7.26 mm	0.286 in
TE Connectivity AMP Connectors 6-1658014-2	Gold	80	Plug Outer Shroud Contacts	0.8 mm	0.031 in	0.25 Ám	10 Áin	Surface Mount	2	8 mm	7.06 mm	0.278 in	Board Guide Ground Bus (Plane)
TE Connectivity AMP Connectors 6-1658014-1	Gold	40	Plug Outer Shroud Contacts	0.8 mm	0.031 in	0.25 Ám	10 Áin	Surface Mount	2	8 mm	7.06 mm	0.278 in	Board Guide Ground Bus (Plane)
