M80-5S2 Series

Catalog

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 8 CONTACTS, SURFACE MOUNT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Number of Positions	Contact Material	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Material Flammability Rating	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Number of Positions Loaded	Voltage Rating	Number of Rows [custom]	Insulation Color	Connector Type	Fastening Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Features	Style	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]

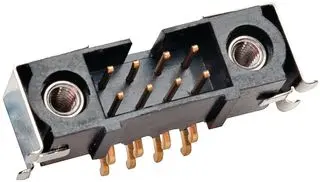

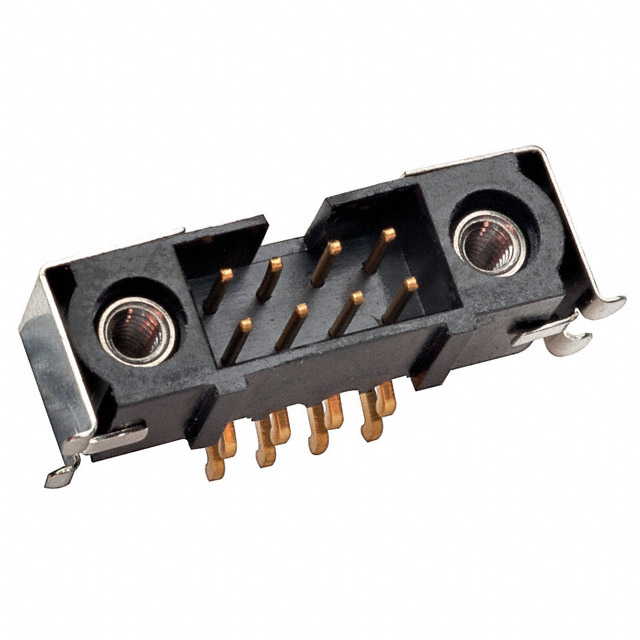

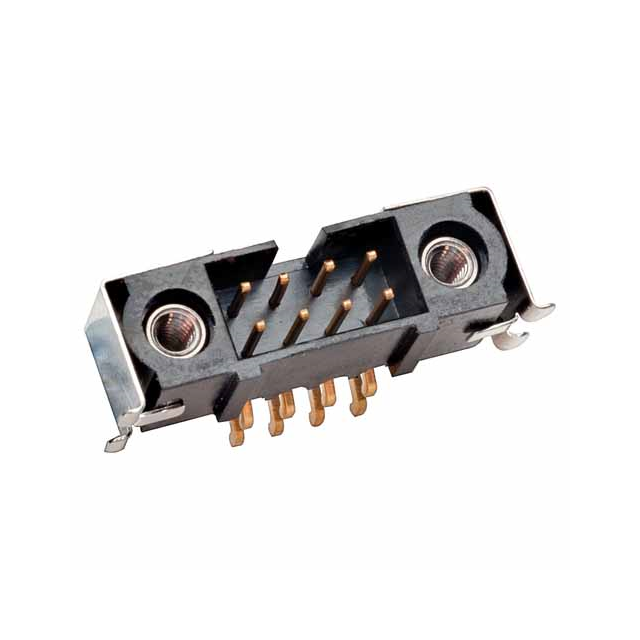

Harwin Inc. M80-5S20805MQ	29.5 µin	0.75 µm	2.2 A	8	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Gold	Right Angle Surface Mount	Gold	All	800 V	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	6.25 mm	0.246 in	Circular	0.079 "	2 mm	Shrouded - 4 Wall	Keying Slot Mating Flange Mating Hardware Solder Retention	Board to Board Cable

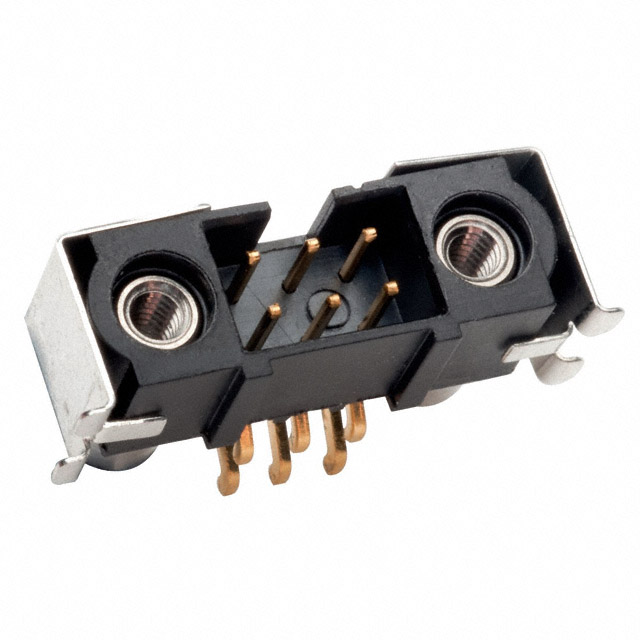

Harwin Inc. M80-5S20605MQ	29.5 µin	0.75 µm	2.2 A	6	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Gold	Right Angle Surface Mount	Gold	All	800 V	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	6.25 mm	0.246 in	Circular	0.079 "	2 mm	Shrouded - 4 Wall	Keying Slot Mating Flange Mating Hardware Solder Retention	Board to Board Cable
Harwin Inc. M80-5S20842MQ	0.3 µm		2.2 A	8	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Tin	Right Angle Surface Mount	Gold	All	800 VAC	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	6.25 mm	0.246 in	Circular	0.079 "	2 mm	Shrouded - 4 Wall	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	12 µin
Harwin Inc. M80-5S25022M3	0.3 µm		2.2 A	50	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Tin-Lead	Right Angle Surface Mount	Gold	All	800 VAC	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C			Circular	0.079 "	2 mm	Shrouded - 4 Wall	Jackscrews Keying Slot Mating Flange	Board to Board Cable	12 µin	0.238 "	6.05 mm

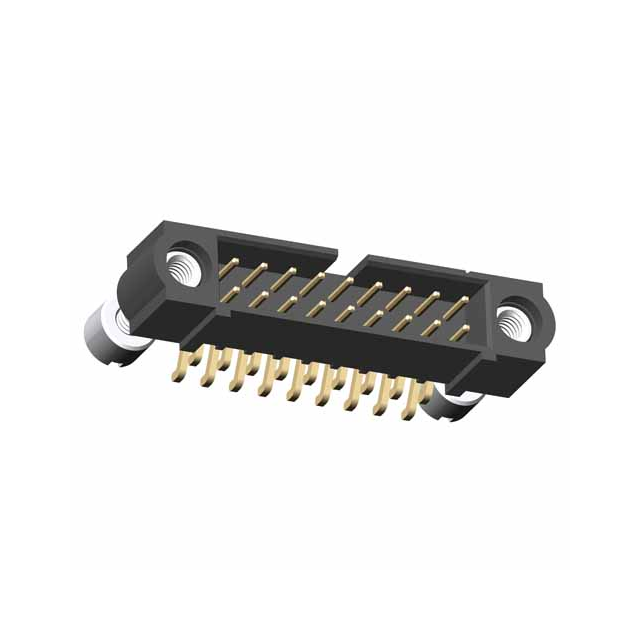

Harwin Inc. M80-5S24422M3	0.3 µm		2.2 A	44	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Tin-Lead	Right Angle Surface Mount	Gold	All	800 VAC	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C			Circular	0.079 "	2 mm	Shrouded - 4 Wall	Jackscrews Keying Slot Mating Flange	Board to Board Cable	12 µin	0.238 "	6.05 mm

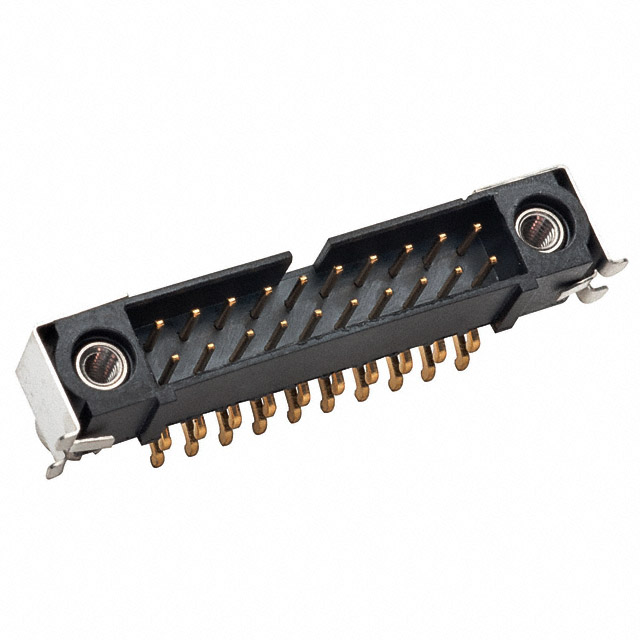

Harwin Inc. M80-5S22005MQ	29.5 µin	0.75 µm	2.2 A	20	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Gold	Right Angle Surface Mount	Gold	All	800 V	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	6.25 mm	0.246 in	Circular	0.079 "	2 mm	Shrouded - 4 Wall	Keying Slot Mating Flange Mating Hardware Solder Retention	Board to Board Cable

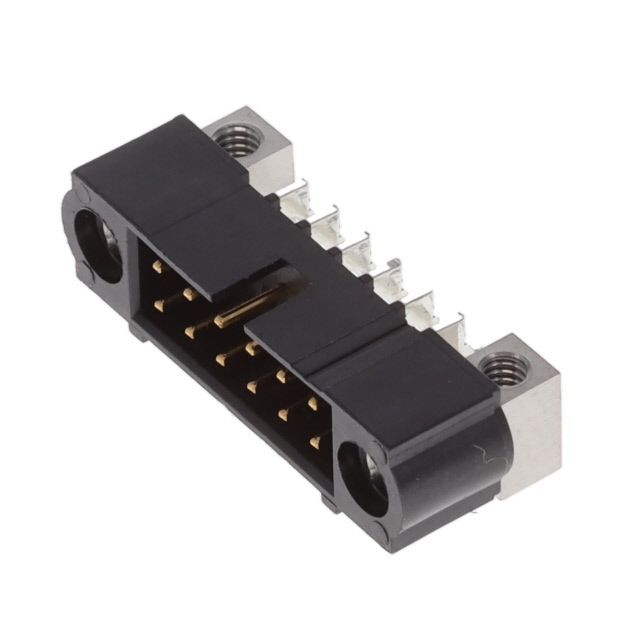

Harwin Inc. M80-5S21222MR
Harwin Inc. M80-5S21042MQ	0.3 µm		2.2 A	10	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Tin	Right Angle Surface Mount	Gold	All	800 VAC	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	6.25 mm	0.246 in	Circular	0.079 "	2 mm	Shrouded - 4 Wall	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	12 µin
Harwin Inc. M80-5S21242MQ	0.3 µm		2.2 A	12	Brass	Solder	29.5 µin	0.75 µm	UL94 V-0	Tin	Right Angle Surface Mount	Gold	All	800 V	2	Black	Header	Threaded	Male Pin	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	6.25 mm	0.246 in	Circular	0.079 "	2 mm	Shrouded - 4 Wall	Keying Slot Mating Flange Mating Hardware Solder Retention	Board to Board Cable	12 µin
