482W101 Series

Manufacturer: Cicoil

Catalog

IDC RIBBON CABLE ASSEMBLY 6' 20C

Part	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Positions	Color	Number of Rows	Length	Length	Shielding	Connector Type	Features	Current Rating (Amps)	Conductor Material	Cable Type	Length	Number of Conductors	Jacket Color	Pitch	Pitch	Wire Gauge	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Number of Positions [custom]
Cicoil 482W101-20-CA-006	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC	20	Clear Ribbon	1	6 ft	1.83 m	Unshielded	Socket to Socket	Friction Lock

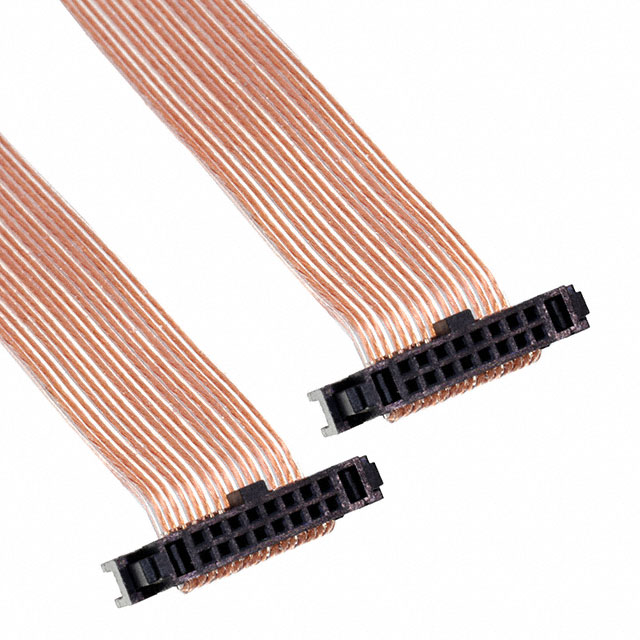

Cicoil 482W101-16-CA-012	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC	16	Clear Ribbon	1	12 ft	3.66 m	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-34-250									10 ft 100 ' 250 ft	3.05 m 30.48 m 76.2 m	Unshielded			0.2 A	Copper Bare	Flat Cable	Enter Number of Feet in Order Quantity	34	Clear	0.64 mm	0.025 in	30 AWG	21.59 mm	0.85 in	0.66 mm	0.026 in	260 °C	-65 ░C	300 VDC
Cicoil 482W101-26-CA-012	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC	26	Clear Ribbon	1	12 ft	3.66 m	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-14-250									25 ft 250 ft	7.62 m 76.2 m	Unshielded			0.2 A	Copper Bare	Flat Cable	Enter Number of Feet in Order Quantity	14	Clear	0.64 mm	0.025 in	30 AWG	8.89 mm	0.35 in	0.66 mm	0.026 in	260 °C	-65 ░C	300 VDC
Cicoil 482W101-34-CA-003	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC		Clear Ribbon	1	3 ft	91.44 cm	Unshielded	Socket to Socket	Friction Lock																	34
Cicoil 482W101-20-CA-003	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC	20	Clear Ribbon	1	3 ft	91.44 cm	Unshielded	Socket to Socket	Friction Lock

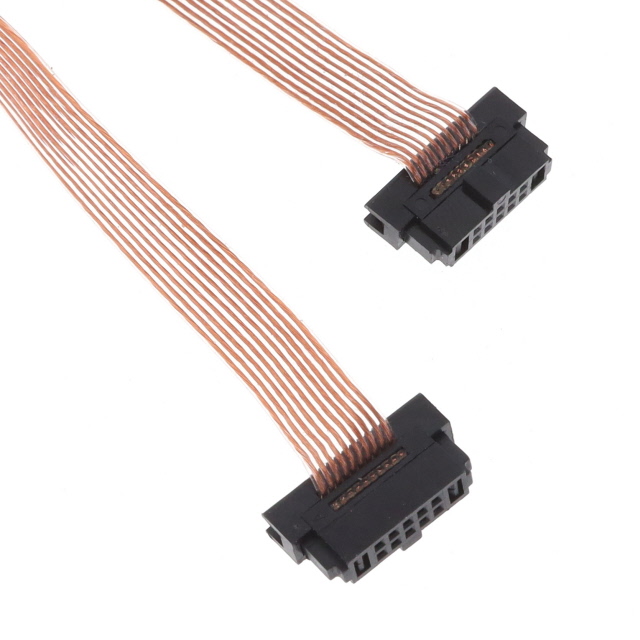

Cicoil 482W101-10-CA-003	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC	10	Clear Ribbon	1	3 ft	91.44 cm	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-14-CA-003	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC	14	Clear Ribbon	1	3 ft	91.44 cm	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-10-CA-006	0.64 mm	0.025 in	0.025 in	0.64 mm	IDC	10	Clear Ribbon	1	6 ft	1.83 m	Unshielded	Socket to Socket	Friction Lock
