LM63635C-Q1 Series

Automotive, 3.5V to 36V, 3.25A step-down voltage converter with spread spectrum

Catalog

Automotive, 3.5V to 36V, 3.25A step-down voltage converter with spread spectrum

Part	Frequency - Switching	Function	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Output Type	Number of Outputs	Topology	Current - Output	Voltage - Output (Min/Fixed)	Supplier Device Package	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Max) [Max]	Grade	Qualification	Main Purpose	Voltage - Output	Regulator Topology	Utilized IC / Part	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Outputs and Type	Frequency - Switching [Min]	Frequency - Switching [Max]
Texas Instruments LM63635CA5QDRRRQ1	400 kHz	Step-Down	3.5 V	-40 °C	125 ¯C	Positive	1.81 mOhm	1	Buck	3.25 A	5 V	12-WSON (3x3)	12-WFDFN Exposed Pad	Surface Mount Wettable Flank	36 V
Texas Instruments LM63635CAQDRRRQ1	2.1 MHz	Step-Down	3.5 V	-40 °C	150 °C	Positive		1	Buck	3.25 A	1 V	12-WSON (3x3)	12-WFDFN Exposed Pad	Surface Mount Wettable Flank	36 V	Adjustable	20 V	Automotive	AEC-Q100

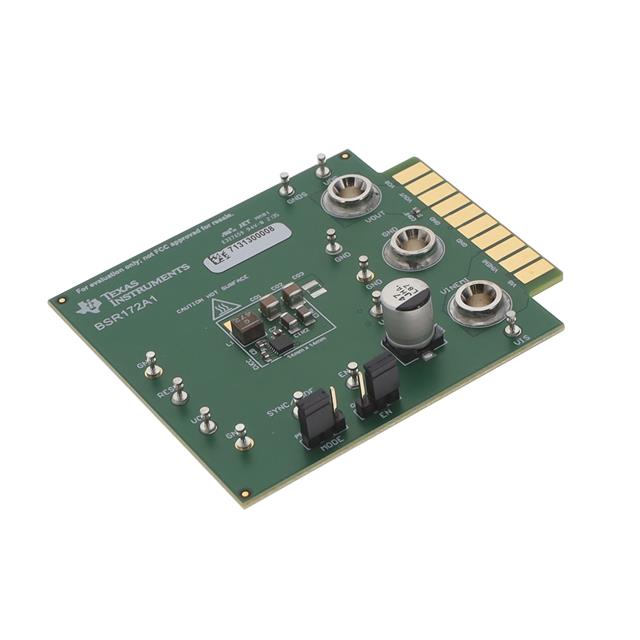

Texas Instruments LM63635DNEVM	2.1 MHz									3.25 A										DC/DC Step Down	5 V	Buck	LM63635-Q1	Fully Populated	3.5 V	36 V	Board(s)	Non-Isolated	1
Texas Instruments LM63635CC5QDRRRQ1	2.1 MHz	Step-Down	3.5 V	-40 °C	125 ¯C	Positive	1.81 mOhm	1	Buck	3.25 A	5 V	12-WSON (3x3)	12-WFDFN Exposed Pad	Surface Mount Wettable Flank	36 V
Texas Instruments LM63635DQDRRRQ1		Step-Down	3.5 V	-40 °C	150 °C	Positive		1	Buck	3.25 A	1 V	12-WSON (3x3)	12-WFDFN Exposed Pad	Surface Mount Wettable Flank	32 V	Adjustable	20 V	Automotive	AEC-Q100											250 kHz	2.2 MHz

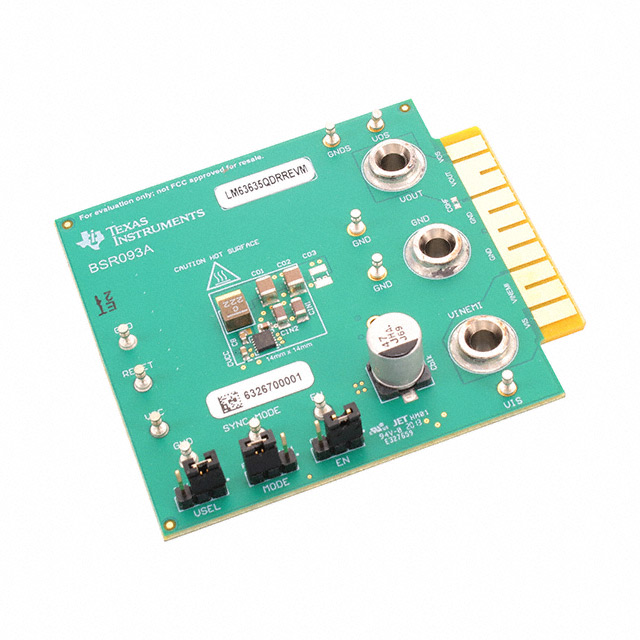

Texas Instruments LM63635QDRREVM	2.1 MHz									3.25 A										DC/DC Step Down	3.3 V 5 V	Buck	LM63635	Fully Populated	3.5 V	32 V	Board(s)	Non-Isolated	1
Texas Instruments LM63635CAQTDRRRDN
Texas Instruments LM63635CC3QDRRRQ1	2.1 MHz	Step-Down	3.5 V	-40 °C	125 ¯C	Positive	1.81 mOhm	1	Buck	3.25 A	3.3 V	12-WSON (3x3)	12-WFDFN Exposed Pad	Surface Mount Wettable Flank	36 V
Texas Instruments LM63635CA3QDRRRQ1	400 kHz	Step-Down	3.5 V	-40 °C	125 ¯C	Positive	1.81 mOhm	1	Buck	3.25 A	3.3 V	12-WSON (3x3)	12-WFDFN Exposed Pad	Surface Mount Wettable Flank	36 V

Catalog

Automotive, 3.5V to 36V, 3.25A step-down voltage converter with spread spectrum

Key Features

• AEC-Q100-qualified for automotive applicationsDevice temperature grade 1: –40°C to +125°C ambient operating temperatureFunctional Safety-CapableDocumentation available to aid functional safety system designSupports automotive system requirementsInput voltage range: 3.5V to 36VShort minimum on-time of 50nsGood Electromagnetic Interference (EMI) performancePsuedo-random spread spectrumCompatible with CISPR 25Low operating quiescent current of 23µAJunction temperature range –40°C to +150°CHigh design flexibilityPin selectable VOUT: 3.3V, 5V, adjustable 1V to 20VOutput current: 3.25APin selectable frequency: 400kHz, 2.1MHz, adjustable 250kHz to 2200kHzPin selectable FPWM, AUTO, sync modesPin compatible with:LM63610-Q1,LM63615-Q1,LM63625-Q1TSSOP: Thermally-enhanced packageSmall design sizeAs small as 14mm × 14mm for 3.25A, 2.2MHz with WSON packageHighly integrated designLow component countAEC-Q100-qualified for automotive applicationsDevice temperature grade 1: –40°C to +125°C ambient operating temperatureFunctional Safety-CapableDocumentation available to aid functional safety system designSupports automotive system requirementsInput voltage range: 3.5V to 36VShort minimum on-time of 50nsGood Electromagnetic Interference (EMI) performancePsuedo-random spread spectrumCompatible with CISPR 25Low operating quiescent current of 23µAJunction temperature range –40°C to +150°CHigh design flexibilityPin selectable VOUT: 3.3V, 5V, adjustable 1V to 20VOutput current: 3.25APin selectable frequency: 400kHz, 2.1MHz, adjustable 250kHz to 2200kHzPin selectable FPWM, AUTO, sync modesPin compatible with:LM63610-Q1,LM63615-Q1,LM63625-Q1TSSOP: Thermally-enhanced packageSmall design sizeAs small as 14mm × 14mm for 3.25A, 2.2MHz with WSON packageHighly integrated designLow component count

Description

The LM63635-Q1 regulator is an easy-to-use, synchronous, step-down DC/DC converter designed for rugged automotive applications. The LM63635-Q1 can drive up to 3.25A of load current from an input of up to 36V for WSON package and 32V for HTSSOP package. The converter has high light load efficiency and output accuracy in a small design size. Features such as a RESET flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM63635-Q1 is available in both the HTSSOP 16-pin power package, with PowerPAD™ integrated circuit package, and the WSON 12-pin power package. The LM63635-Q1 regulator is an easy-to-use, synchronous, step-down DC/DC converter designed for rugged automotive applications. The LM63635-Q1 can drive up to 3.25A of load current from an input of up to 36V for WSON package and 32V for HTSSOP package. The converter has high light load efficiency and output accuracy in a small design size. Features such as a RESET flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM63635-Q1 is available in both the HTSSOP 16-pin power package, with PowerPAD™ integrated circuit package, and the WSON 12-pin power package.
