G-INS-M16 Series

Catalog

CABLE GLANDS, STRAIN RELIEFS & CORD GRIPS G-INS-M16-T68N- PNES-LG

Part	Material	Thread Size	Thread Length	Thread Length	Type	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]

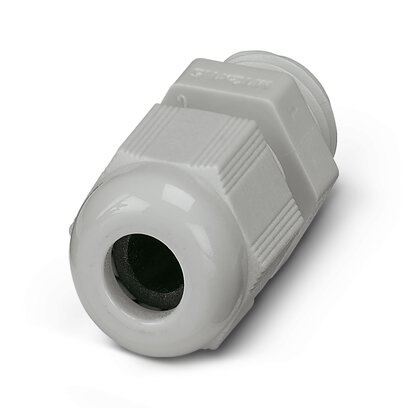

Phoenix Contact 1424470	Polyamide (PA) Nylon	M16x1.5	0.315 "	8 mm	Cable Gland	IP66 IP68	8 mm	0.315 in	Seal	4 mm	0.157 in	-40 C	100 °C	Gray
Phoenix Contact 1411162	Brass Nickel Plated	M16	0.276 "	7 mm	Cable Gland	IP66 IP68 IP69	10 mm	0.394 in	O-Ring Seal			-40 C	100 °C	Silver	0.197 in	5 mm
Phoenix Contact 1424475	Polyamide (PA) Nylon	M16x1.5	0.315 "	8 mm	Cable Gland	IP66 IP68	8 mm	0.315 in	Seal	4 mm	0.157 in	-40 C	100 °C	Gray

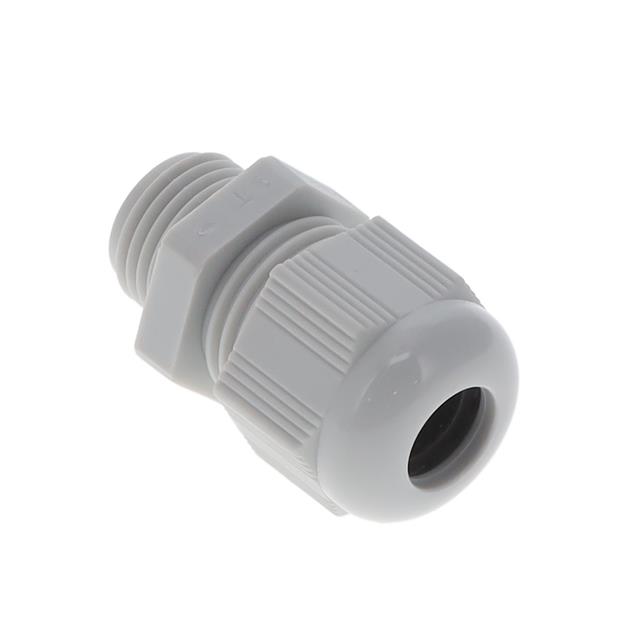

Phoenix Contact 1417653	Polyamide (PA) Nylon	M16x1.5	0.394 in	10 mm	Cable Gland	IP66 IP68	10 mm	0.394 in	Seal			-40 C	100 °C	Light Gray	0.197 in	5 mm

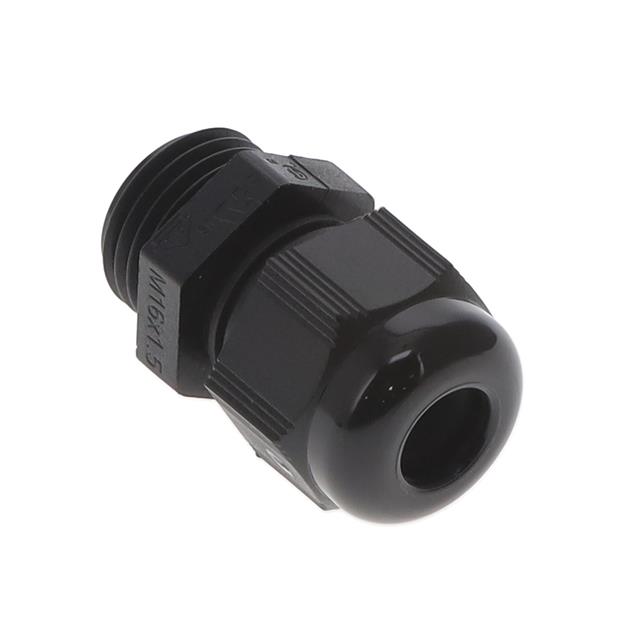

Phoenix Contact 1424480	Polyamide (PA) Nylon	M16x1.5	0.315 "	8 mm	Cable Gland	IP66 IP68	8 mm	0.315 in	Seal	4 mm	0.157 in	-40 C	100 °C	Black
