BSB Series
Manufacturer: Delta Electronics
Beta
⌘K

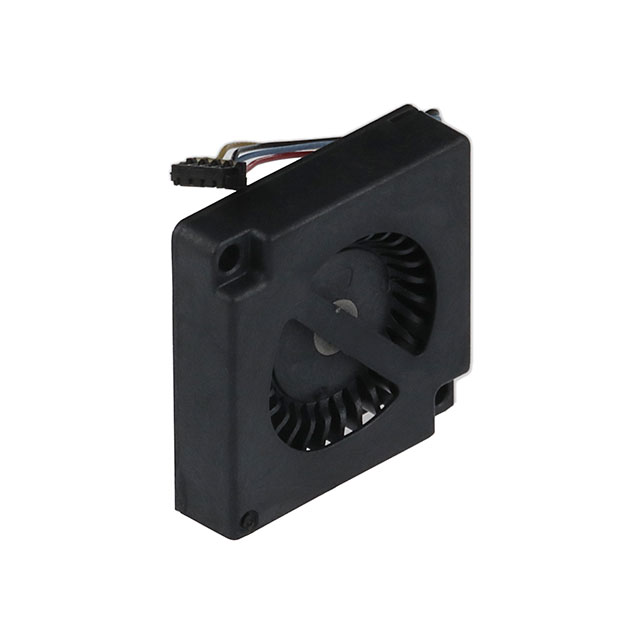

DC FANS TUBEAXIAL FAN, 20X5MM, 5VDC, SLEEVE, 4X LEAD WIRES, LOCK ROTOR SENSOR, TACH, PWM
| Part | Material - Blade | Material - Frame | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Width [x] | Air Flow | Air Flow | Noise | Static Pressure | Static Pressure | Bearing Type | Power (Watts) | Voltage - Rated | RPM | Weight [custom] | Weight [custom] | Termination | Size / Dimension [z] | Size / Dimension [x] | Features | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 30000 Hrs | 5.5 V | 2 | -10 °C | 60 °C | cURus TUV | 5.28 mm | 0.57 CFM | 0.016 m³/min | 35.9 dB(A) | 99.6 Pa | 0.4 in H2O | Sleeve | 0.4 W | 5 V | 12000 RPM | 0.004 lb | 1.81 g | 4 Wire Leads | 17 mm | 17 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Tubeaxial |
