SM30B-SH Series

Catalog

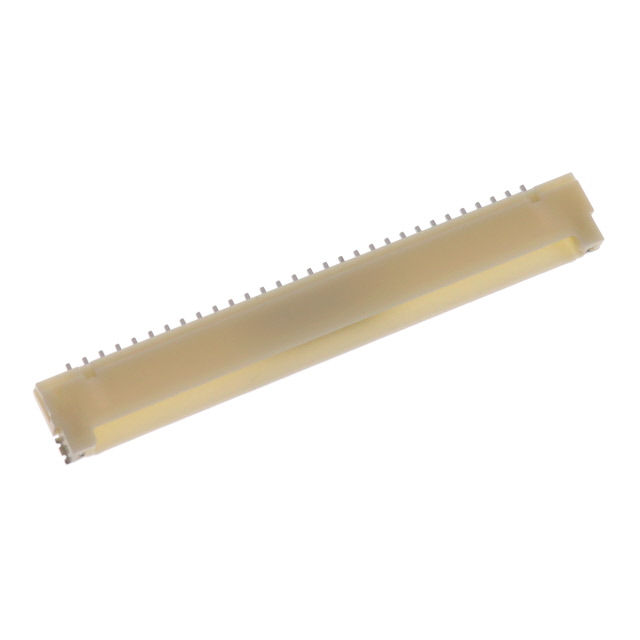

CONN HEADER SMD R/A 30POS 1MM

Part	Connector Type	Fastening Type	Number of Positions	Shrouding	Material Flammability Rating	Style	Insulation Height	Insulation Height	Mounting Type	Voltage Rating	Number of Rows [custom]	Termination	Contact Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Insulation Material	Insulation Color	Features	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Number of Rows	Insulation Height [z]	Insulation Height [z]
JST Sales America Inc. SM30B-SHLDS-G-TF	Header	Latch Holder	30	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire	0.215 in	5.45 mm	Right Angle Surface Mount	50 V	2	Solder	Non-Gendered	Gold	85 °C	-25 °C	All	Nylon Polyamide (PA)	Natural	Solder Retention	Phosphor Bronze	1 mm	0.039 in
JST Sales America Inc. SM30B-SHLS-TF(LF)(SN)	Header	Push-Pull	30	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire			Right Angle Surface Mount	50 V		Solder	Outer Shroud Contact		85 °C	-25 °C	All	Nylon Polyamide (PA)	Natural	Solder Retention	Phosphor Bronze	1 mm	0.039 in	Tin	Rectangular	1	0.069 in	1.75 mm
