92_SMA-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

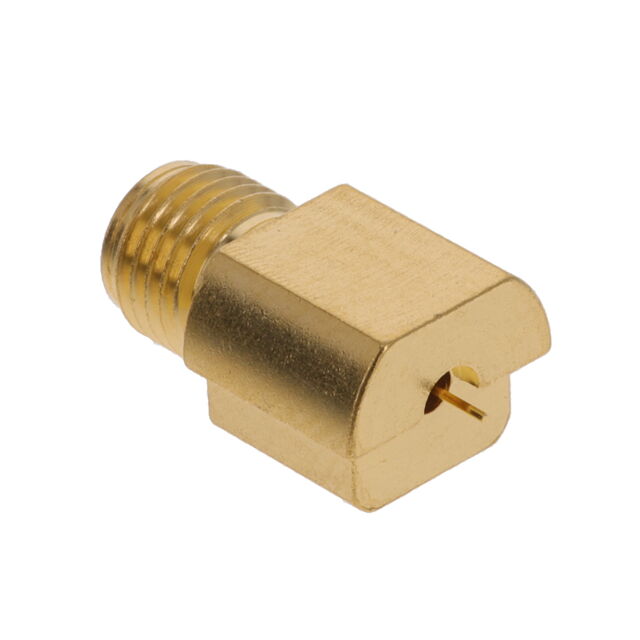

RF COAX CONN, SMA, JACK, 50 OHM ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Body Finish | Shield Termination | Housing Color | Center Contact Material | Impedance | Frequency - Max [Max] | Connector Type | Fastening Type | Contact Termination | Connector Style | Mounting Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | Gold | Solder | Gold | Beryllium Copper | 50 Ohms | 18 GHz | Female Socket Jack | Threaded | Solder | SMA | Board Edge End Launch | 1 |
