65834 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

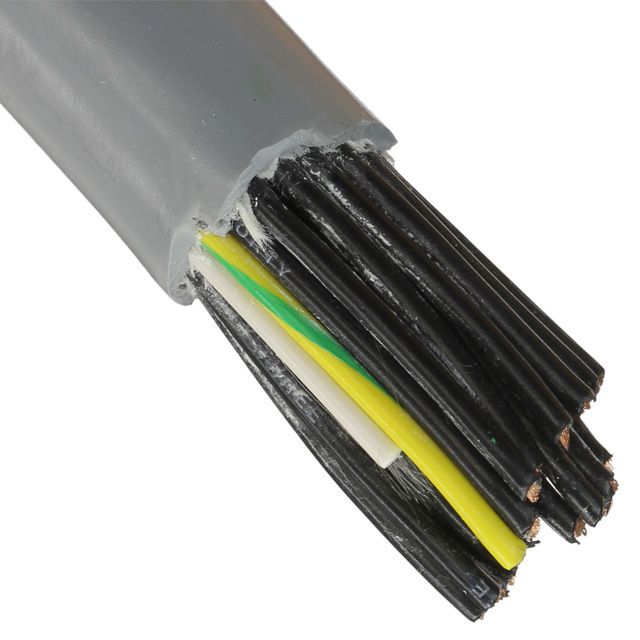

MULTI-CONDUCTOR CABLES 18 AWG 34 CONDUCTOR 600V UNSHIELDED PVC PVC, 100 FT SPOOL - SLATE
| Part | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Voltage | Wire Gauge | Number of Conductors | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Ratings | Features | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | 0.769 " | 19.53 mm | 0.06 in | 1.524 mm | 100 ft | 30.5 m | 600 V | 18 AWG | 34 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Copper Bare | ISO 10993 UL Style 2587 | Biological Compatibility | ||
 ALPHA WIRE | Slate | 0.769 " | 19.53 mm | 0.06 in | 1.524 mm | 600 V | 18 AWG | 34 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Copper Bare | ISO 10993 UL Style 2587 | Biological Compatibility | 304.8 m | 1000 ft |
