901301 Series

Manufacturer: Molex

Catalog

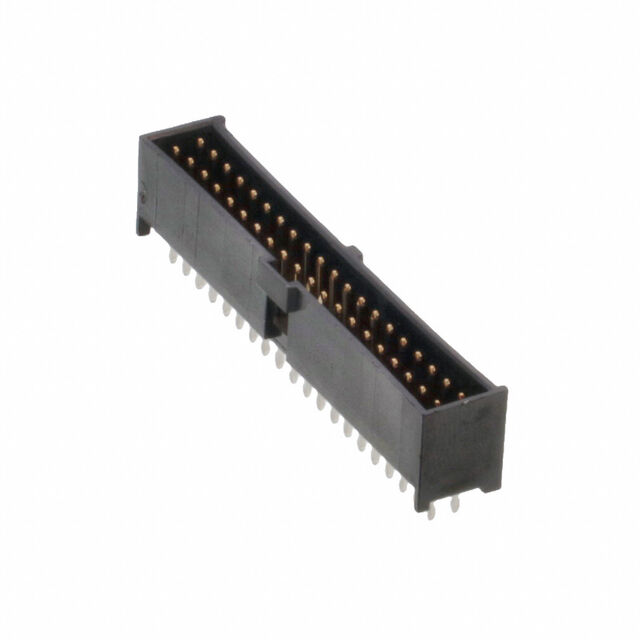

CONN HEADER VERT 40POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Applications	Material Flammability Rating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Shape	Number of Positions Loaded	Contact Finish - Post	Termination	Shrouding	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Type	Number of Rows [custom]	Contact Finish - Mating	Connector Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Fastening Type
Molex 0901301240	118.1 µin	3 µm	Automotive General Purpose	UL94 V-0	Board to Cable/Wire	0.114 in	2.9 mm	40	Square	All	Tin	Solder	Shrouded - 4 Wall	0.429 in	10.9 mm	0.1 in	2.54 mm	Brass	0.266 in	6.75 mm	Through Hole	Male Pin	2	Gold	Header	Black	0.38 µm	15 µin	Polyester Glass Filled	0.1 "	2.54 mm	Latch Holder
