FFC0912 Series

Catalog

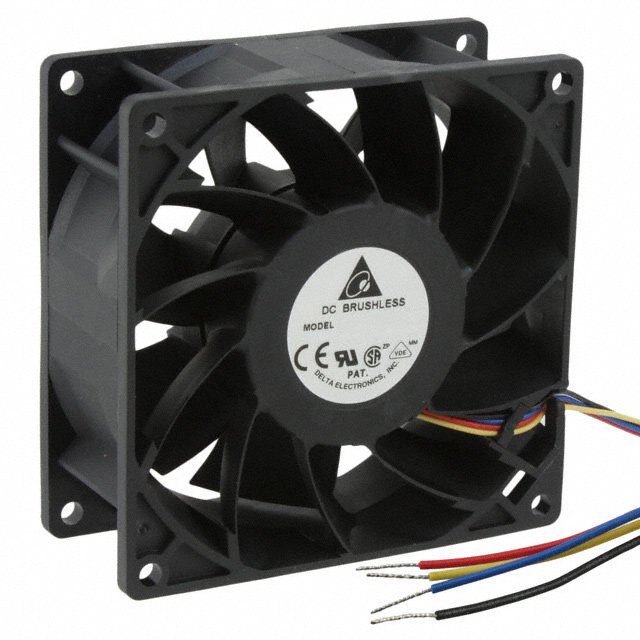

FAN AXIAL 92X38MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	RPM	Features	Weight	Weight	Fan Type	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Termination	Bearing Type	Power (Watts)	Approval Agency	Noise	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Air Flow	Air Flow
Delta Electronics FFC0912DE-TP04	Plastic	800 mA	7 V	13.2 VDC	Plastic	70000 Hrs	4800 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.437 lb	198 g	Tubeaxial	38 mm	-10 °C	60 °C	12 VDC	4 Wire Leads	Ball	9.6 W	CE CSA UL VDE	55 dB(A)	92 mm	92 mm	165.6 Pa	0.665 in H2O	110.2 CFM	3.09 m³/min
Delta Electronics FFC0912DE-SP13	Plastic	880 mA	7 V	13.2 VDC	Plastic	70000 Hrs	5000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.408 lb	185.07 g	Tubeaxial	38 mm	-10 °C	60 °C	12 VDC	4 Wire Leads	Ball	10.56 W	CE CSA UL VDE	55 dB(A)	92 mm	92 mm	169.6 Pa	0.681 in H2O	103.8 CFM	2.91 mł/min
