R12570 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
COAX ADAPT SMA TO SMA
| Part | Dielectric Material | Body Finish | Mating Cycles | Center Contact Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Frequency - Max [Max] | Center Contact Plating | Conversion Type | Convert From (Adapter End) | Impedance | Mounting Type | Adapter Type | Style | Center Gender | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

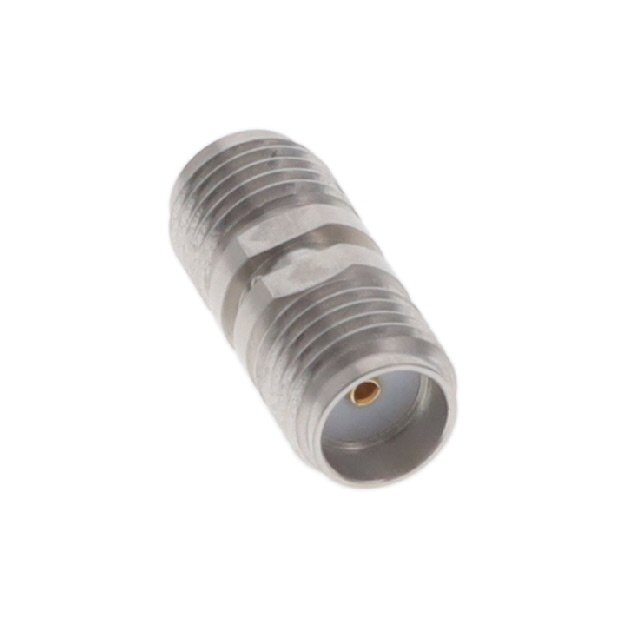

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | 500 | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | SMA Jack Female Socket | 18 GHz | Gold | Same Series | Female Socket SMA Jack | 50 Ohms | Free Hanging (In-Line) | Jack to Jack | Straight | Female to Female | SMA to SMA |

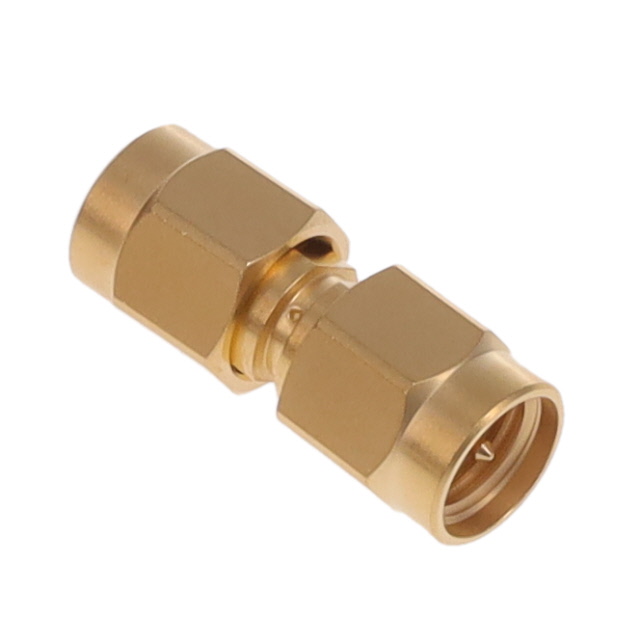

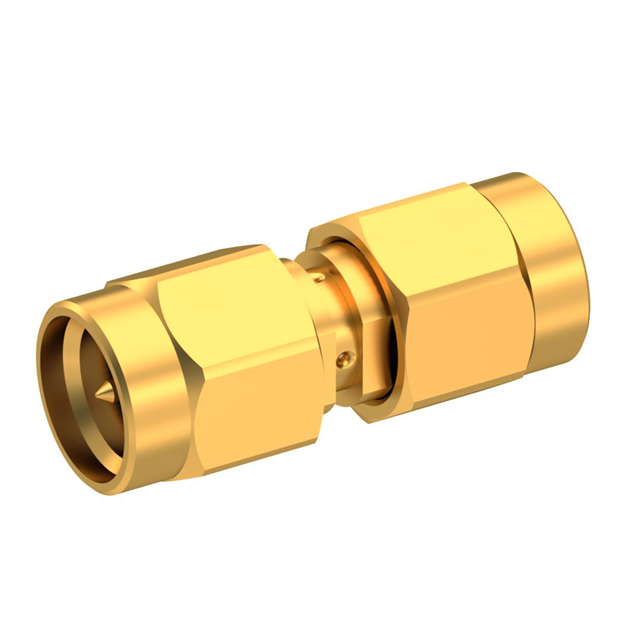

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | 500 | Brass | Stainless Steel | -65 ░C | 165 °C | SMA Plug Male Pin | 18 GHz | Gold | Same Series | Male Pin SMA Plug | 50 Ohms | Free Hanging (In-Line) | Plug to Plug | Straight | Male to Male | SMA to SMA |

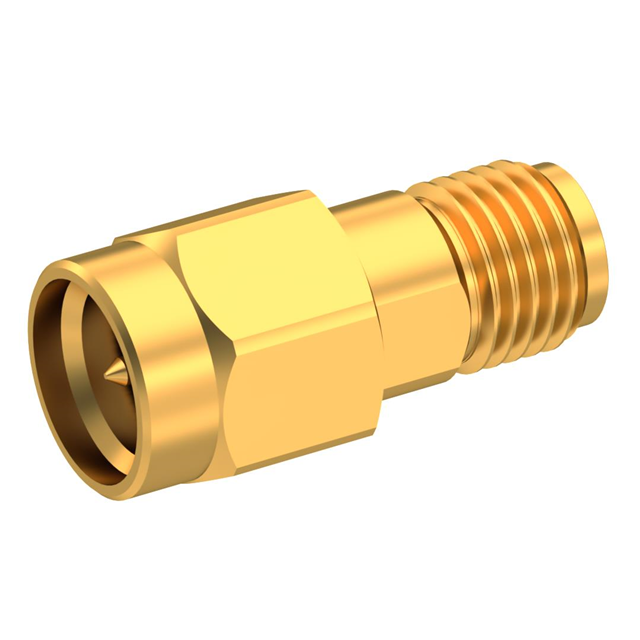

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | 500 | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | SMA Jack Female Socket | 18 GHz | Gold | Same Series | Male Pin SMA Plug | 50 Ohms | Free Hanging (In-Line) | Plug to Jack | Straight | SMA to SMA | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | SMA Jack Female Socket | 18 GHz | Gold | Same Series | Female Socket SMA Jack | 50 Ohms | Free Hanging (In-Line) | Jack to Jack | Straight | Female to Female | SMA to SMA | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | 500 | Brass | Stainless Steel | -65 ░C | 165 °C | SMA Plug Male Pin | 18 GHz | Gold | Same Series | Male Pin SMA Plug | 50 Ohms | Free Hanging (In-Line) | Plug to Plug | Straight | Male to Male | SMA to SMA |
