25096 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

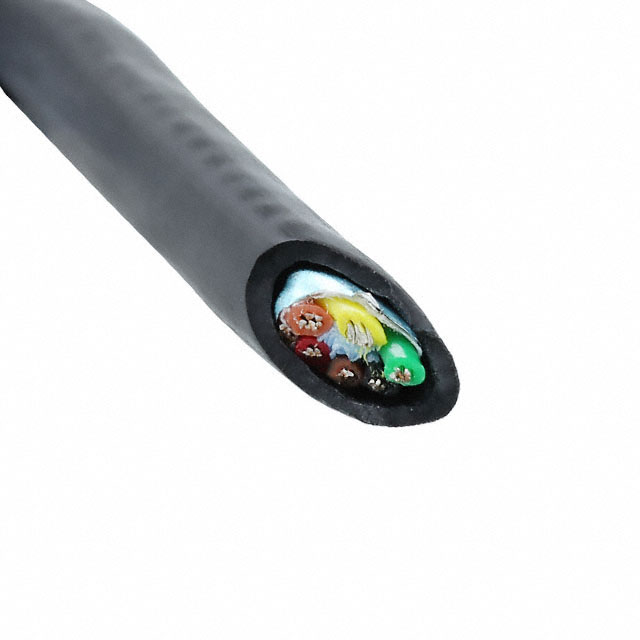

CABLE 6COND 24AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Number of Conductors | Voltage | Wire Gauge | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Features | Jacket (Insulation) Material | Conductor Insulation | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Spool Size [x] | Spool Size [x] | Usage | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.205 in | 5.21 mm | Multi-Conductor | 6 | 300 VDC | 24 AWG | Slate | -30 ░C | 90 °C | Foil | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | 304.8 m | 1000 ft | Biological Compatibility Drain Wire Rip Cord | Polyurethane (PU) | Poly-Vinyl Chloride (PVC) | Copper Tinned | 7 | 32 AWG | ||||||
 ALPHA WIRE | Aluminum | 0.205 in | 5.21 mm | Multi-Conductor | 6 | 24 AWG | Black | -30 ░C | 90 °C | Foil | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | Polyurethane (PU) | Poly-Vinyl Chloride (PVC) | Copper Tinned | 7 | 32 AWG | 304.8 m | 1000 ft | Communication Control | Enter Number of Feet in Order Quantity | ||||||
ALPHA WIRE | Aluminum | 100 % | 0.205 in | 5.21 mm | Multi-Conductor | 6 | 300 VDC | 24 AWG | Black | -30 ░C | 90 °C | Foil | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | Polyurethane (PU) | Poly-Vinyl Chloride (PVC) | Copper Tinned | 7 | 32 AWG | 100 ft | 30.5 m |
