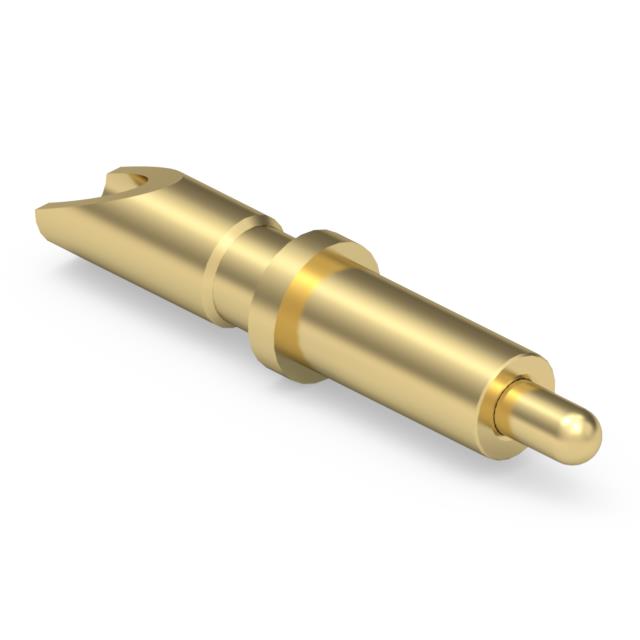

0854-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED IN-LINE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Initial | Contact Finish | Mating Cycles | Current Rating (Amps) | Operating Force - Mid Compression | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Features | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Minimum Working Height [z] | Minimum Working Height [z] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 25 gf | Gold | 1000000 | 9.6 A | 120 gf | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 16 AWG | 1.27 mm | 0.05 in | Brass Alloy | 0.249 in | 6.32 mm | 3.18 mm | 0.125 in | Solder Cup Through Hole | 0.294 in | 7.47 mm |
