284052 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

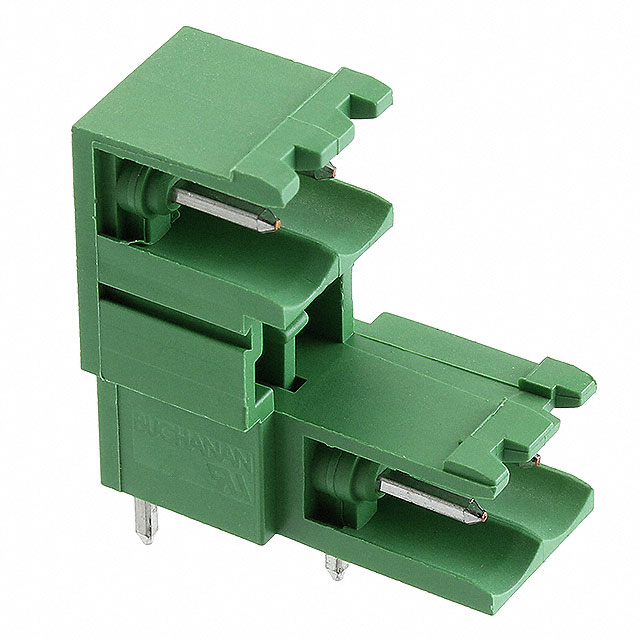

TERM BLOCK HDR 4POS 90DEG 5MM
| Part | Header Orientation | Current - UL | Material Flammability Rating | Contact Mating Finish | Contact Tail Length | Contact Tail Length | Termination Style | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height [z] | Insulation Height [z] | Positions Per Level | Number of Levels | Voltage - UL | Color | Mounting Type | Type | Number of Positions | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 90° Right Angle | 12 A | UL94 V-0 | Tin | 3.5 mm | 0.138 in | Solder | 5 mm | 0.197 in | -40 °C | 110 °C | 0.902 " | 22.9 mm | 2 | 2 | 300 V | Green | Through Hole | Header Male Pins Shrouded (2 Side) | 4 | Interlocking (Side) | Phosphor Bronze |
