19430240 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, IP66, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 24B
| Part | Ingress Protection | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Style | Housing Color | Connector Type | Housing Material | Features | Thread Size | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

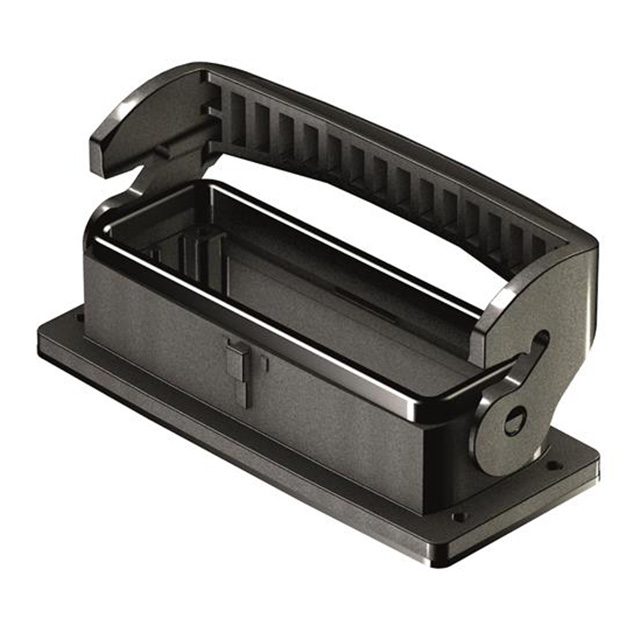

 HARTING | IP66 - Dust Tight Water Resistant | 60 mm | 1.421 in | 5.551 " | 36.1 mm | 141 mm | 2.362 in | 24 B | Locking Clip (1) on Base Bottom | 125 °C | -40 C | Bottom Entry | Black | Base - Panel Mount | Glass Filled Nylon Polyamide (PA) | ||||

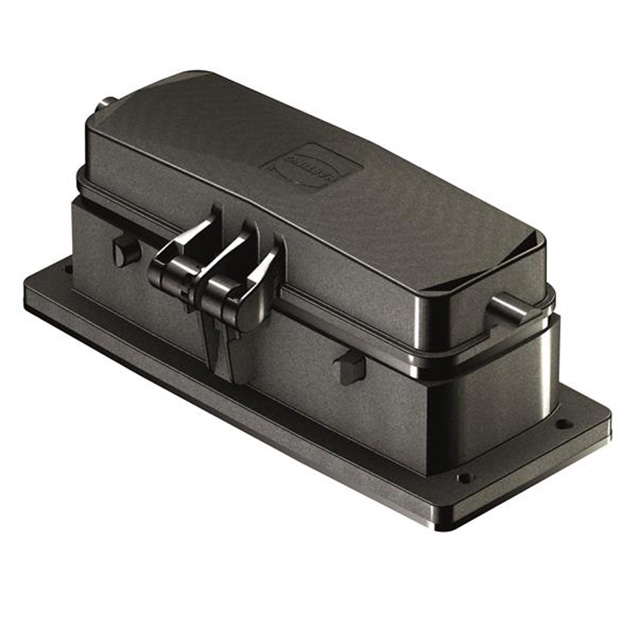

 HARTING | IP66 - Dust Tight Water Resistant | 60 mm | 1.421 in | 5.551 " | 36.1 mm | 141 mm | 2.362 in | 24 B | Locking Clip (2) on Hood | 125 °C | -40 C | Bottom Entry | Black | Base - Panel Mount | Glass Filled Nylon Polyamide (PA) | Cover | |||

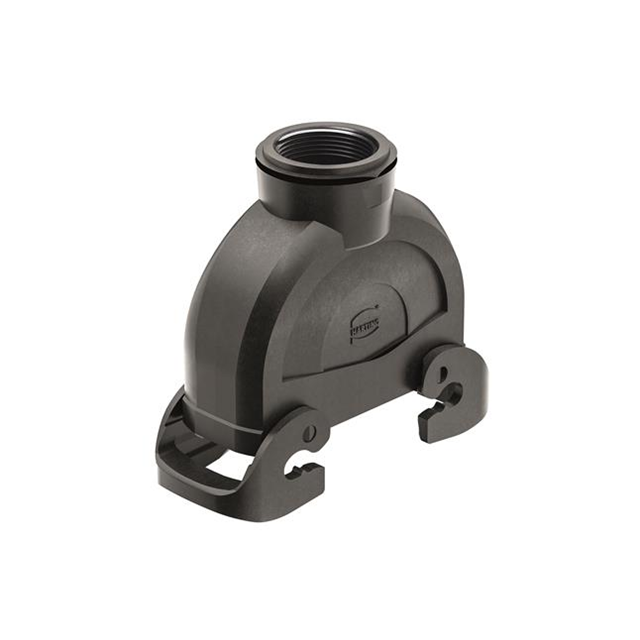

 HARTING | IP66 - Dust Tight Water Resistant | 24 B | Locking Clip (2) on Hood | 125 °C | -40 C | Top Entry | Black | Hood | Glass Filled Nylon Polyamide (PA) | ||||||||||
 HARTING | IP66 - Dust Tight Water Resistant | 60 mm | 1.421 in | 5.551 " | 36.1 mm | 141 mm | 2.362 in | 24 B | Locking Clip (2) on Base Bottom | 125 °C | -40 C | Bottom Entry | Black | Base - Panel Mount | Glass Filled Nylon Polyamide (PA) | ||||
 HARTING | IP66 - Dust Tight Water Resistant | 3.465 " | 5.669 in | 144 mm | 2.559 " | 24 B | Locking Clip (1) on Base Bottom | 125 °C | -40 C | Side Entry | Black | Base - Box Mount | Glass Filled Nylon Polyamide (PA) | M25 | 65 mm | 88 mm |
