GBC32S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 32POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Insulation Material	Mounting Type	Insulation Color	Style	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Termination	Number of Positions Loaded	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]
Sullins Connector Solutions GBC32SABN-M30	2.54 µm	100 µin	Header Breakaway	Nylon 9T Polyamide (PA9T)	Surface Mount	Black	Board to Board Cable	UL94 V-0	Square	0.25 µm	10 µin	0.23 in	5.84 mm	1	0.1 "	2.54 mm	Phosphor Bronze	Male Pin	Solder	All	Push-Pull	0.1 in	2.54 mm	Tin	3 A	Gold	Unshrouded	150 °C	-65 ░C

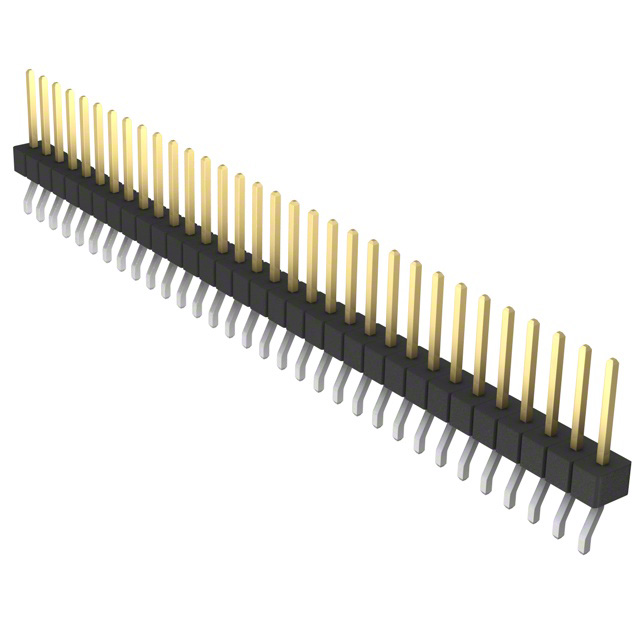

Sullins Connector Solutions GBC32SGSN-M89	2.54 µm	100 µin	Header Breakaway	Nylon 9T Polyamide (PA9T)	Right Angle Surface Mount	Black	Board to Board Cable	UL94 V-0	Square	0.25 µm	10 µin	0.318 in	8.08 mm	1	0.1 "	2.54 mm	Phosphor Bronze	Male Pin	Solder	All	Push-Pull	0.14 in	3.56 mm	Tin	3 A	Gold	Unshrouded	150 °C	-65 ░C

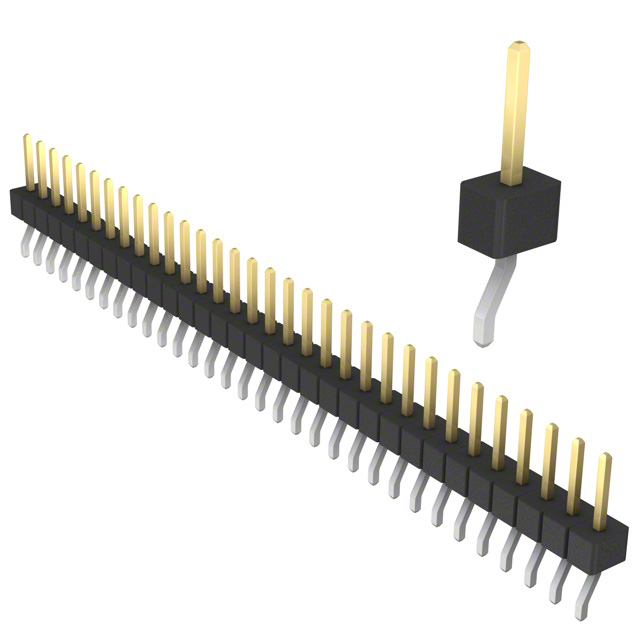

Sullins Connector Solutions GBC32SBSN-M89	2.54 µm	100 µin	Header Breakaway	Nylon 9T Polyamide (PA9T)	Right Angle Surface Mount	Black	Board to Board Cable	UL94 V-0	Square	0.25 µm	10 µin	0.23 in	5.84 mm	1	0.1 "	2.54 mm	Phosphor Bronze	Male Pin	Solder	All	Push-Pull	0.14 in	3.56 mm	Tin	3 A	Gold	Unshrouded	150 °C	-65 ░C
Sullins Connector Solutions GBC32SFBN-M30	2.54 µm	100 µin	Header Breakaway	Nylon 9T Polyamide (PA9T)	Surface Mount	Black	Board to Board Cable	UL94 V-0	Square	0.25 µm	10 µin	0.318 in	8.08 mm	1	0.1 "	2.54 mm	Phosphor Bronze	Male Pin	Solder	All	Push-Pull	0.1 in	2.54 mm	Tin	3 A	Gold	Unshrouded	150 °C	-65 ░C
