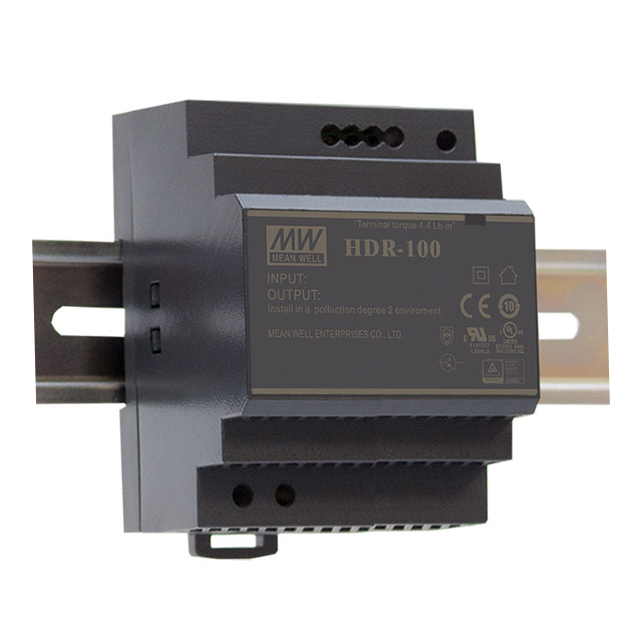

HDR-100 Series

Catalog

AC/DC DIN RAIL SUPPLY 15V 98W

Part	Applications	Input Type	Voltage - Output 1	Efficiency	Features	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency
MEAN WELL USA Inc. HDR-100-15N	ITE (Commercial)	AC or DC	15 V	89 %	Adjustable Output Universal Input	370 V	120 V	98 W	-30 °C	70 °C	1	264 VAC	85 VAC	4000 V	6.5 A	2.76 "	3.54 "	54.5 mm	70 mm	2.15 "	90 mm	CB CE cULus cURus TUV
MEAN WELL USA Inc. HDR-100-24	ITE (Commercial)	AC or DC	24 V	90 %	Adjustable Output Universal Input	370 V	120 V	92 W	-30 °C	70 °C	1	264 VAC	85 VAC	4000 V	3.83 A	2.76 "	3.54 "	54.5 mm	70 mm	2.15 "	90 mm	CB CE cULus cURus TUV
MEAN WELL USA Inc. HDR-100-12	ITE (Commercial)	AC or DC	12 V	88 %	Adjustable Output Universal Input	370 V	120 V	85 W	-30 °C	70 °C	1	264 VAC	85 VAC	4000 V	7.1 A	2.76 "	3.54 "	54.5 mm	70 mm	2.15 "	90 mm	CB CE cULus cURus TUV
MEAN WELL USA Inc. HDR-100-24N	ITE (Commercial)	AC or DC	24 V	90 %	Adjustable Output Universal Input	370 V	120 V	101 W	-30 °C	70 °C	1	264 VAC	85 VAC	4000 V	4.2 A	2.76 "	3.54 "	54.5 mm	70 mm	2.15 "	90 mm	CB CE cULus cURus TUV
MEAN WELL USA Inc. HDR-100-15	ITE (Commercial)	AC or DC	15 V	89 %	Adjustable Output Universal Input	370 V	120 V	92 W	-30 °C	70 °C	1	264 VAC	85 VAC	4000 V	6.13 A	2.76 "	3.54 "	54.5 mm	70 mm	2.15 "	90 mm	CB CE cULus cURus TUV
MEAN WELL USA Inc. HDR-100-12N	ITE (Commercial)	AC or DC	12 V	88 %	Adjustable Output Universal Input	370 V	120 V	90 W	-30 °C	70 °C	1	264 VAC	85 VAC	4000 V	7.5 A	2.76 "	3.54 "	54.5 mm	70 mm	2.15 "	90 mm	CB CE cULus cURus TUV
